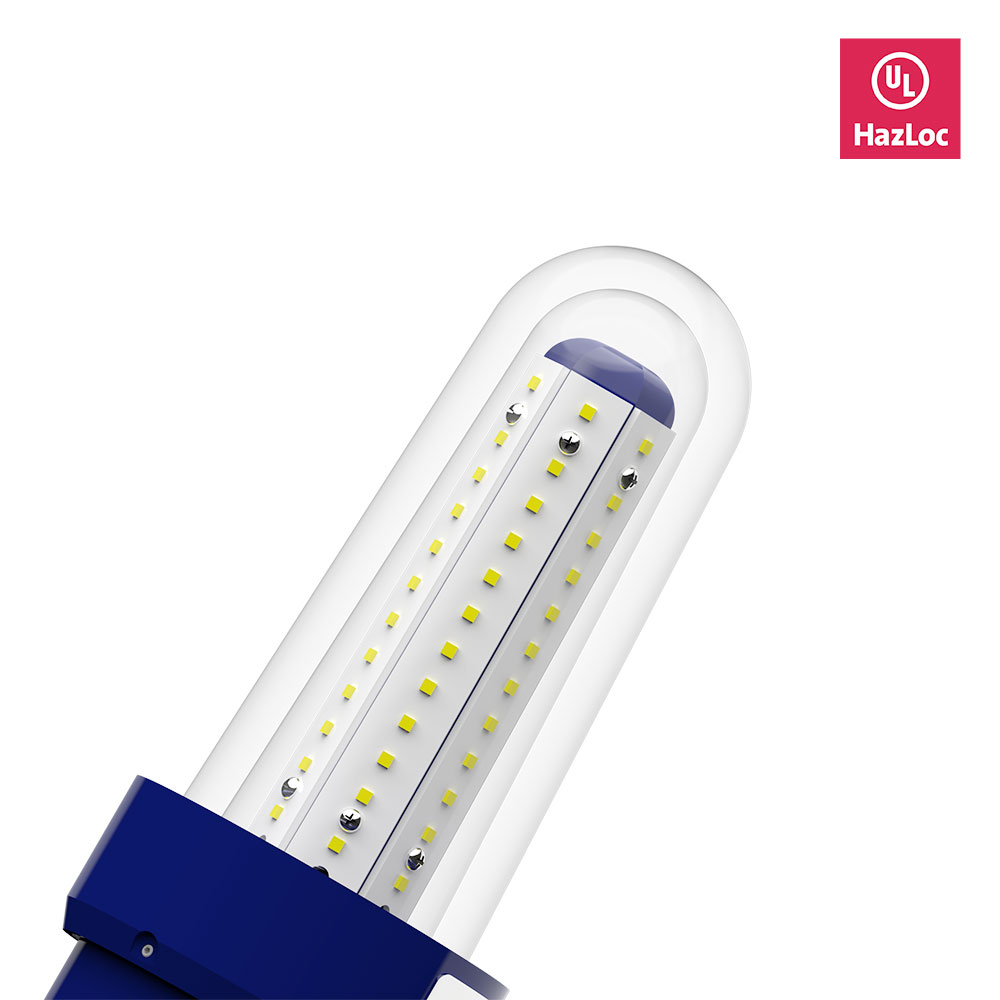

Class 1 Division 1 LED Hand Light - CES-SC
Product Description
•The lights in this series are capable of offering portable illumination for hazardous locations and temporary projects, such as quick plant turnarounds, MRO projects, oil fields, marine sites and tank cleaning etc. Our Portable Electric Hand Lamps are designed for Class I, Division 1 & 2, Class II, Division 1 & 2 and Class III environments.
Features
Features:
• Industry-leading efficacy: up to 130 LPW;
• CCT: 3000K/4000K/6500K;
• -20°C to +40°C ambient operating temperature
• 5 Year Warranty
• Prevent drop damage
• Swivel hook for hanging and hands free operation

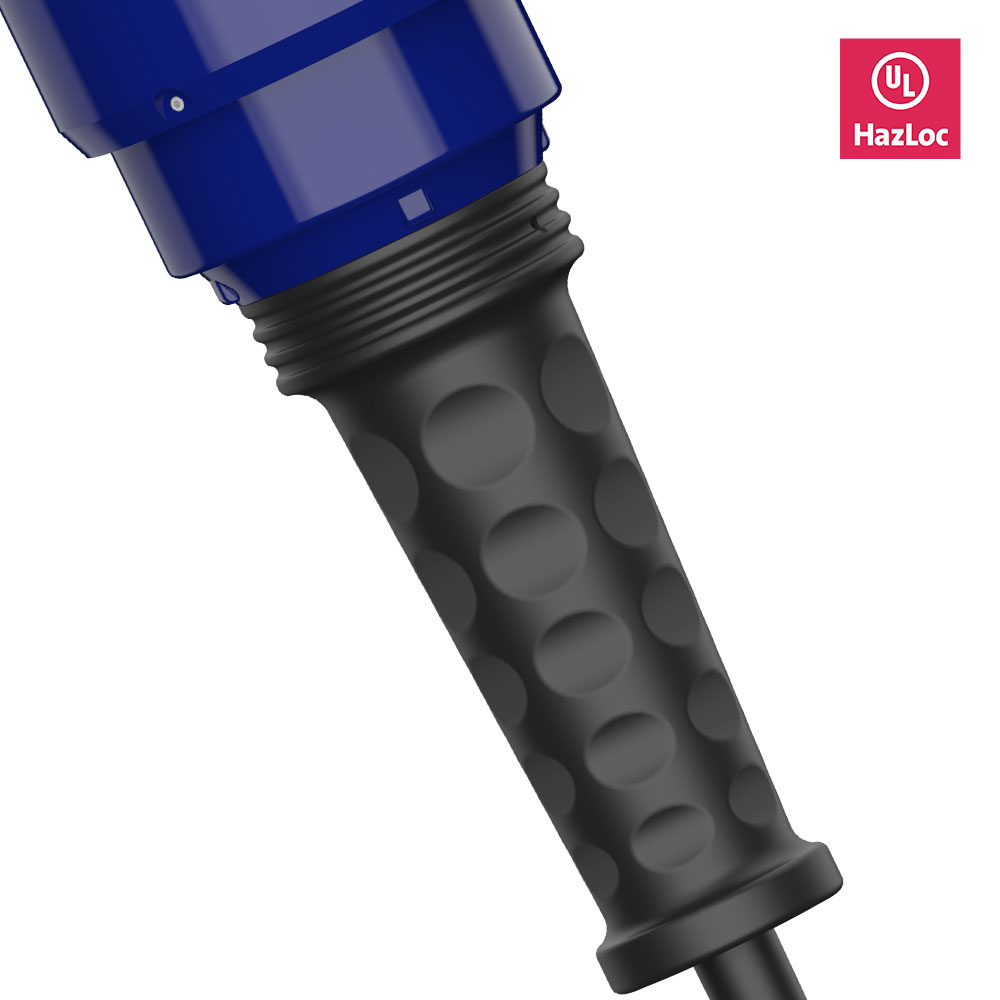

• Molded rubber protection cable
Standard Materials:
• Housing –Aluminum alloy (ADC12);
• Lens –tempered glass;
Certifications and compliances
Certifications and compliances:
NEC/CEC:
• Class I, Division 1, Groups B, C and D
• Class II, Division 1, Groups E, F and G
• Class I, Division 2, Groups A, B, C and D
• Class II, Division 2, Groups F and G
• Class III
• T-Class: T6 / T80°C
• IP66;
• Damp and wet locations
• Paint spray rated
Standard :
US: UL 844; UL 153;
Canada: CSA C22.2 No. 137; CSA C22.2 No.250.4;
Safety precautions
CUL for Hazloc:
l SUITABLE FOR WET LOCATIONS;
l THIS LUMINAIRE IS ACCEPTABLE FOR OPERATION IN AMBIENT CONDITIONS NOT EXCEEDING __40__ °C (__104__ °F);
l FOR SUPPLY CONNECTION, USE WIRES RATED FOR AT LEAST______°C (°F);
l NO SERVICEABLE PARTS” OR “NO USER SERVICEABLE PARTS. DO NOT OPEN FOR CLEANING.;
l CAUTION - ″TO REDUCE THE RISK OF IGNITION OF HAZARDOUS ATMOSPHERES, DISCONNECT THE LUMINAIRE FROM THE SUPPLY CIRCUIT BEFORE OPENING. KEEP TIGHTLY CLOSED WHEN IN OPERATION.″;
l THIS PRODUCT MUST BE INSTALLED IN ACCORDANCE WITH THE APPLICABLE INSTALLATION CODE BY A PERSON FAMILIAR WITH THE CONSTRUCTION AND OPERATION OF THE PRODUCT AND THE HAZARDS INVOLVED;
l “CAUTION – RISK OF SHOCK” and “DISCONNECT POWER BEFORE SERVICING”.
l “WARNING –KEEP COVER TIGHT WHILE CIRCUITS ARE ALIVE and GARDER LE COUVERCLE BIEN FERMÉ TANT QUE LES CIRCUITS SONT SOUS TENSION”
l “CAUTION DO NOT USE IN THE PROXIMITY OF VEHICLES OR EQUIPMENT, WHEN THERE IS A RISK OF FLAMMABLE LIQUIDS COMING INTO CONTACT WITH THE HANDLAMP”
l “AC ONLY”
l “DISCONNECT PLUG BEFORE RELAMPING OR SERVICING”
