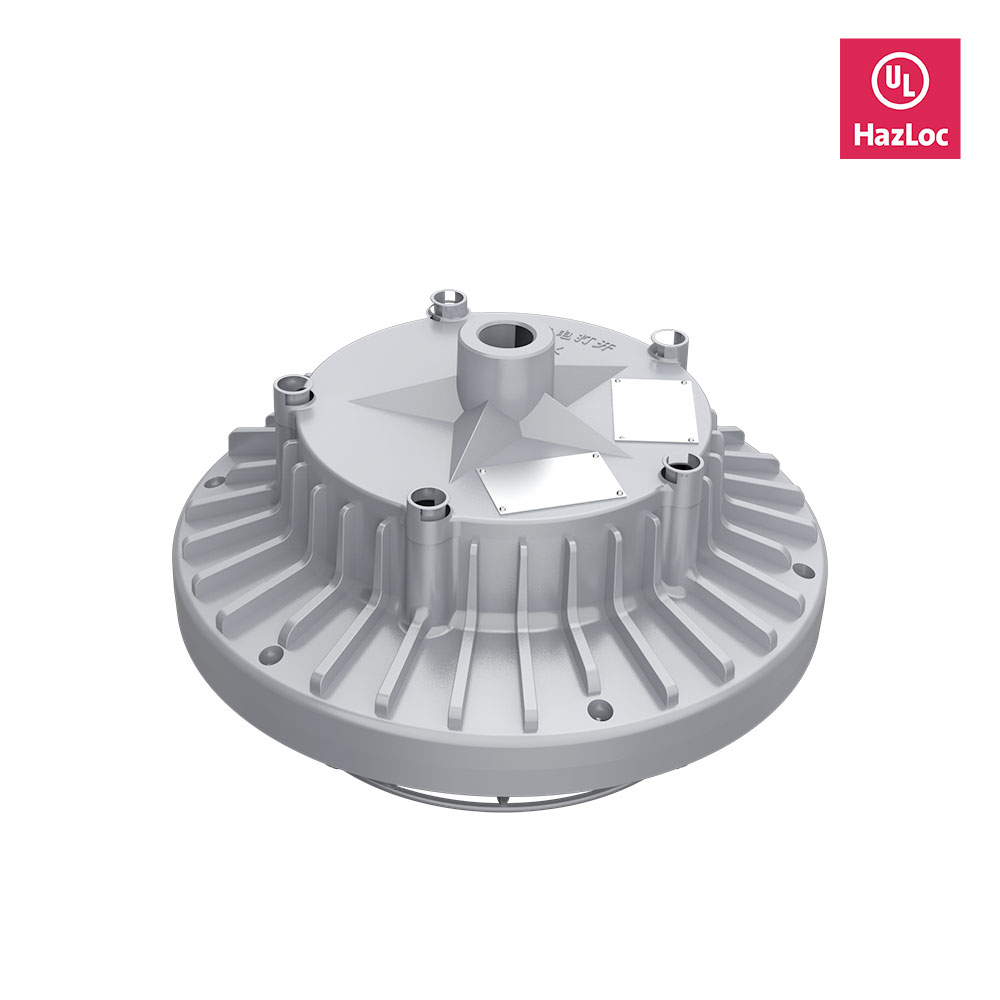

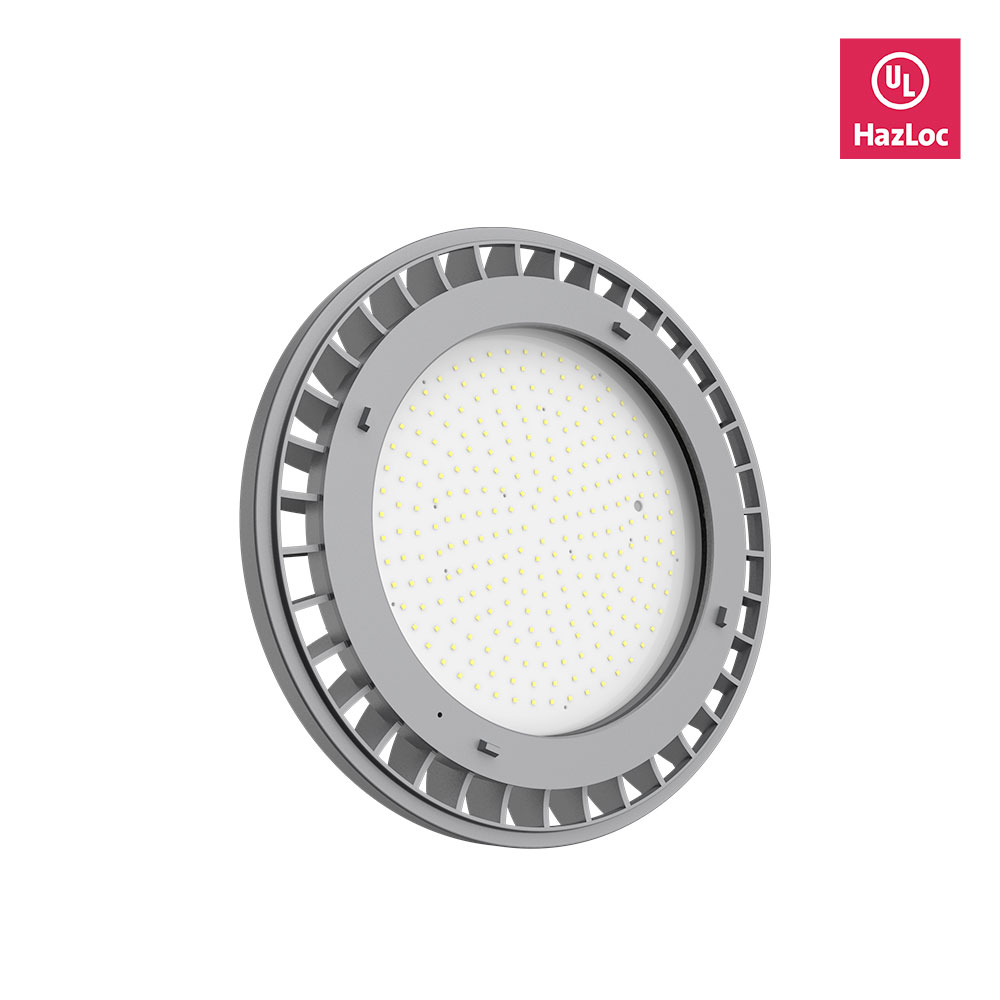

Class 1 Div 2 LED Lights CES-EX-GB-02

Product Description


Applications:

• Wastewater treatment, oil and gas refineries, drilling rigs, petrochemical facilities, food and beverage facilities, tunnels, outdoor wall and stanchion mounted general area lighting, and where flammable vapors, gases are present.

• Applies to hazardous locations of Class I, Division 2 with explosive gas atmosphere.

• Applies to marine locations, non-recessed outside type (salt water).

Features

Features:

• Industry-leading efficacy: up to 130 LPW;

• CTT: 3000K~6500K;

• -40°C to +50°C ambient operating temperature

• Wide optics for uniform illumination

• 5 years warranty

• Entry Size: 3/4’’-14 NPT

• Junction box optional

Standard Materials:

• Housing –Aluminum alloy (ADC12);

• Lens –tempered glass;

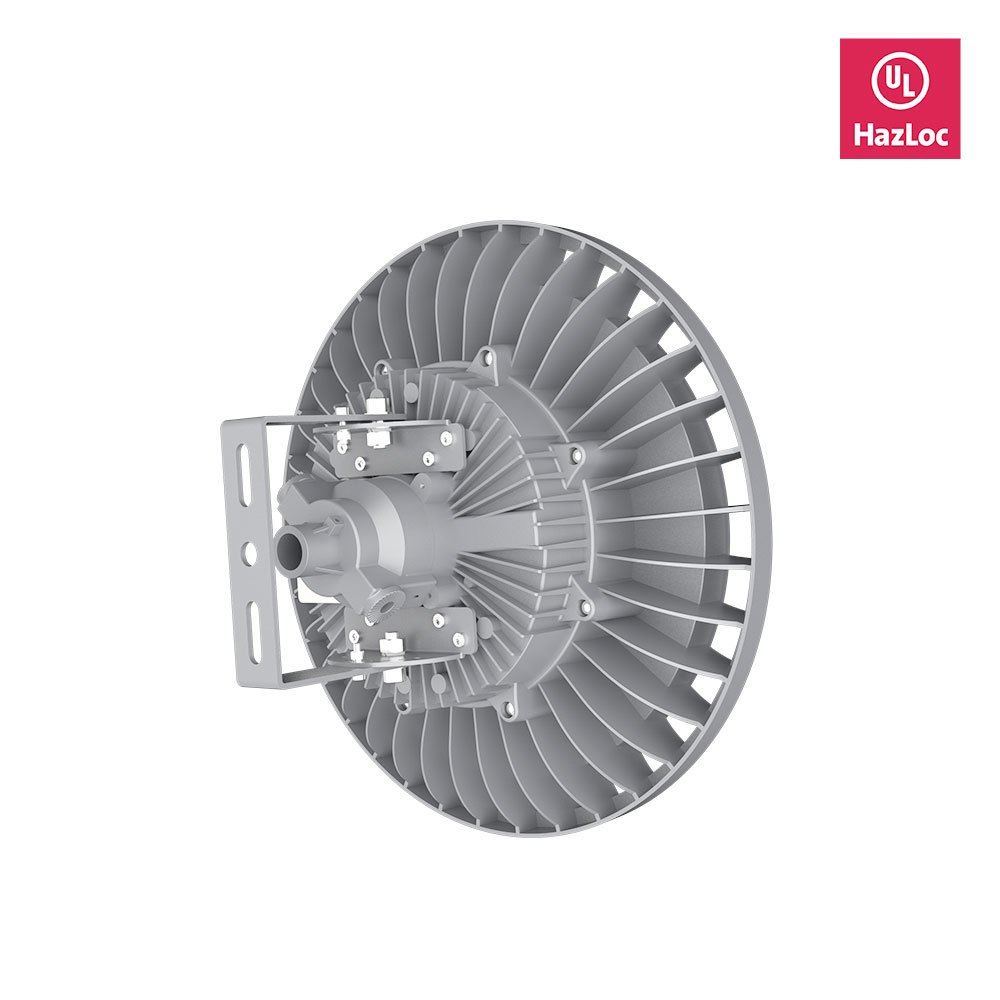

Mounting (ordered separately):

Versatile mounting options:

• Ceiling mount

• Pole mount

• Wall Mount

Mounting Angle：0°to ±90°;

Certifications and compliances

Certifications and compliances:

NEC/CEC:
• Class I, Division 2, Groups A, B, C and D

• Class II, Division 2, Groups F and G
• Class III
• T-Class: T *

• Damp and wet locations

• Certification body：UL

• Certification Mark：CUL

• Certificate No：E475887


Standard :

US:  UL 844; UL 1598;

Canada: CSA C22.2 No. 137; CSA C22.2 No. 250.0;

Safety precautions

CUL for Hazloc:

SUITABLE FOR WET LOCATIONS;

THIS LUMINAIRE IS ACCEPTABLE FOR OPERATION IN AMBIENT CONDITIONS NOT EXCEEDING 50°C;

FOR SUPPLY CONNECTION, USE WIRES RATED FOR AT LEAST 90°C;

NO SERVICEABLE PARTS” OR “NO USER SERVICEABLE PARTS. DO NOT OPEN FOR CLEANING.;

CAUTION - ″TO REDUCE THE RISK OF IGNITION OF HAZARDOUS ATMOSPHERES, DISCONNECT THE LUMINAIRE FROM THE SUPPLY CIRCUIT BEFORE OPENING. KEEP TIGHTLY CLOSED WHEN IN OPERATION.″;

THIS PRODUCT MUST BE INSTALLED IN ACCORDANCE WITH THE APPLICABLE INSTALLATION CODE BY A PERSON FAMILIAR WITH THE CONSTRUCTION AND OPERATION OF THE PRODUCT AND THE HAZARDS INVOLVED;

“CAUTION – RISK OF SHOCK” and “DISCONNECT POWER BEFORE SERVICING”.
