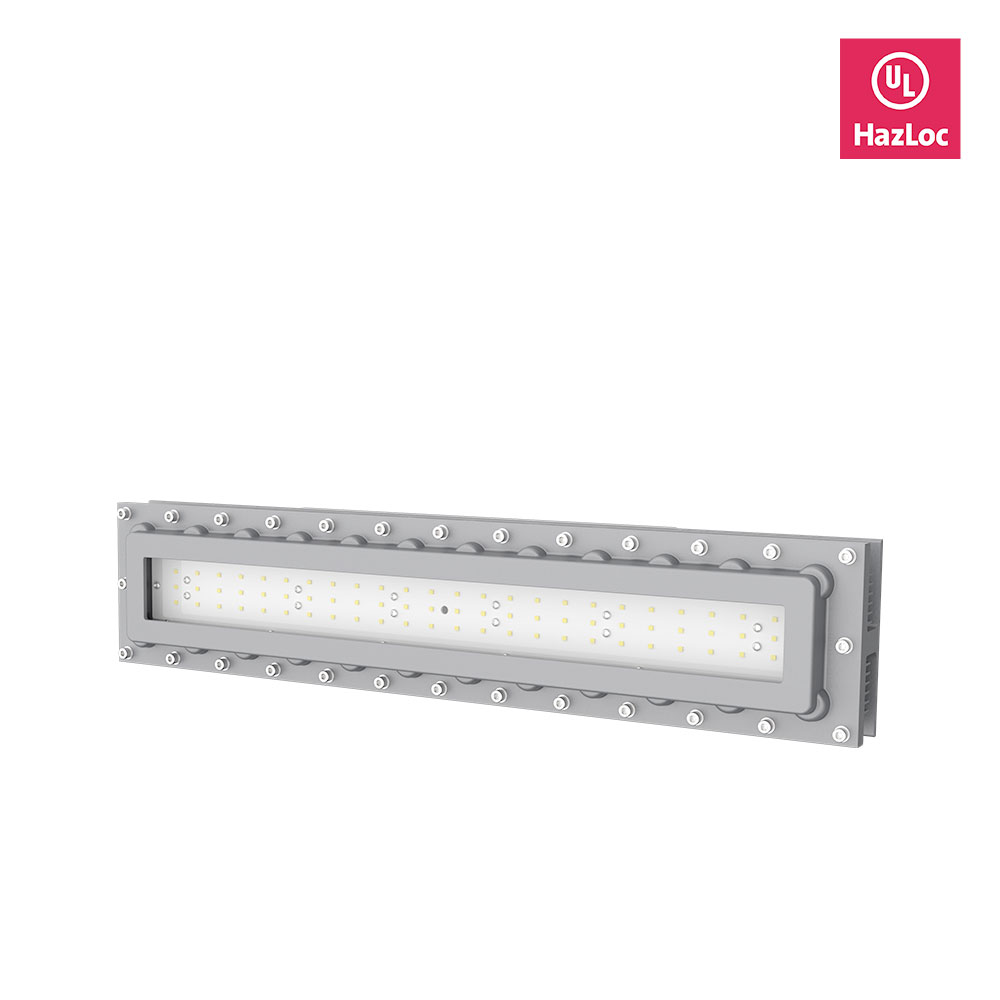

Class 1 Div 2 LED Lights CES-EX-LN-02
Product Description
Applications:
• Wastewater treatment, oil and gas refineries, drilling rigs, petrochemical facilities, food and beverage facilities, tunnels, outdoor wall and stanchion mounted general area lighting, and where flammable vapors, gases are present.
• Applies to hazardous locations of Class I, Division 2 with explosive gas atmosphere.
• Applies to marine locations, non-recessed outside type (salt water).
Features
Features:
• Industry-leading efficacy: up to 130 LPW;
• CTT: 3000K~6500K;
• -40°C to +50°C ambient operating temperature
• Wide optics for uniform illumination
• 5 years warranty
• Entry Size: 3/4’’-14 NPT
• Junction box optional
Standard Materials:
• Housing –Aluminum alloy (ADC12);
• Lens –tempered glass;

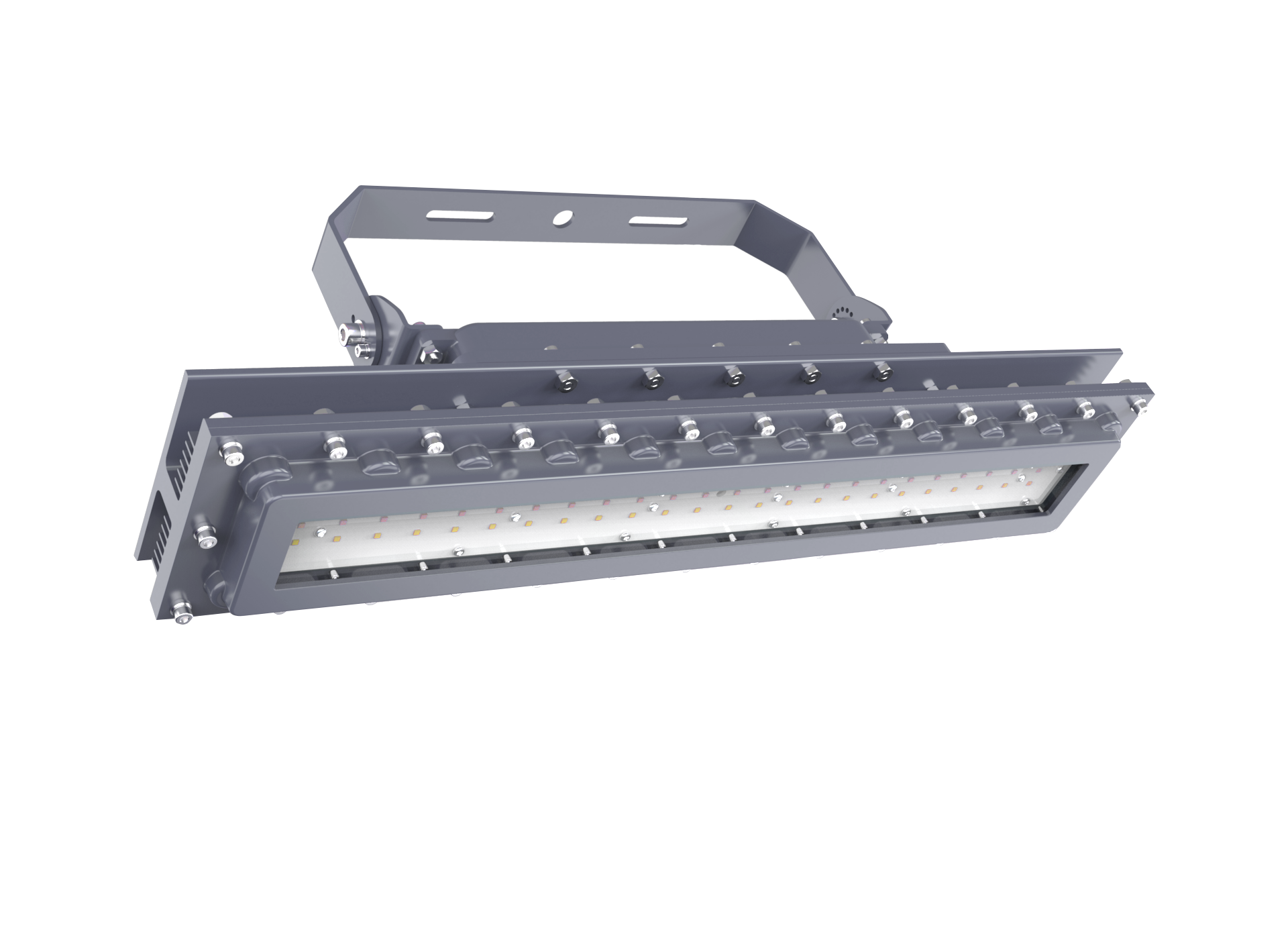

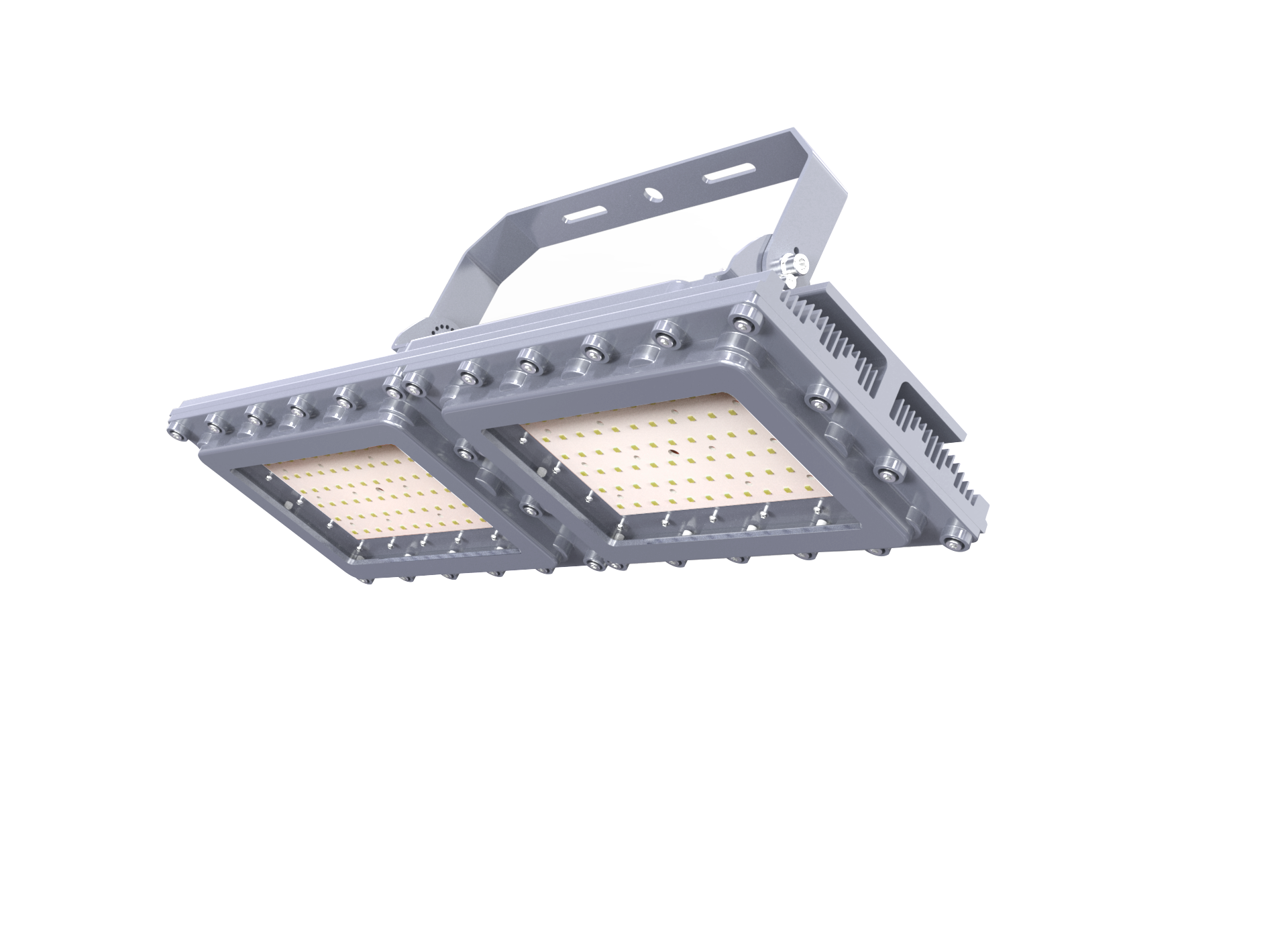

Mounting (ordered separately):
Versatile mounting options:
•Ceiling mount
•Wall Mount
•Drop Mount
Mounting Angle：0°to ±90°;
Certifications and compliances
Certifications and compliances:
NEC/CEC:
• Class I, Division 2, Groups A, B, C and D
• Class II, Division 2, Groups F and G
• Class III
• Damp and wet locations
• Certification body：UL
• Certification Mark：CUL
• Certificate No：E475887
Standard :
US: UL 844; UL 1598;
Canada: CSA C22.2 No. 137; CSA C22.2 No. 250.0;
Safety precautions
CUL for Hazloc:
l SUITABLE FOR WET LOCATIONS;
l THIS LUMINAIRE IS ACCEPTABLE FOR OPERATION IN AMBIENT CONDITIONS NOT EXCEEDING 50 °C;
l FOR SUPPLY CONNECTION, USE WIRES RATED FOR AT LEAST 90°C;
l NO SERVICEABLE PARTS” OR “NO USER SERVICEABLE PARTS. DO NOT OPEN FOR CLEANING.;
l CAUTION - ″TO REDUCE THE RISK OF IGNITION OF HAZARDOUS ATMOSPHERES, DISCONNECT THE LUMINAIRE FROM THE SUPPLY CIRCUIT BEFORE OPENING. KEEP TIGHTLY CLOSED WHEN IN OPERATION.″;
l THIS PRODUCT MUST BE INSTALLED IN ACCORDANCE WITH THE APPLICABLE INSTALLATION CODE BY A PERSON FAMILIAR WITH THE CONSTRUCTION AND OPERATION OF THE PRODUCT AND THE HAZARDS INVOLVED;
l “CAUTION – RISK OF SHOCK” and “DISCONNECT POWER BEFORE SERVICING”.
