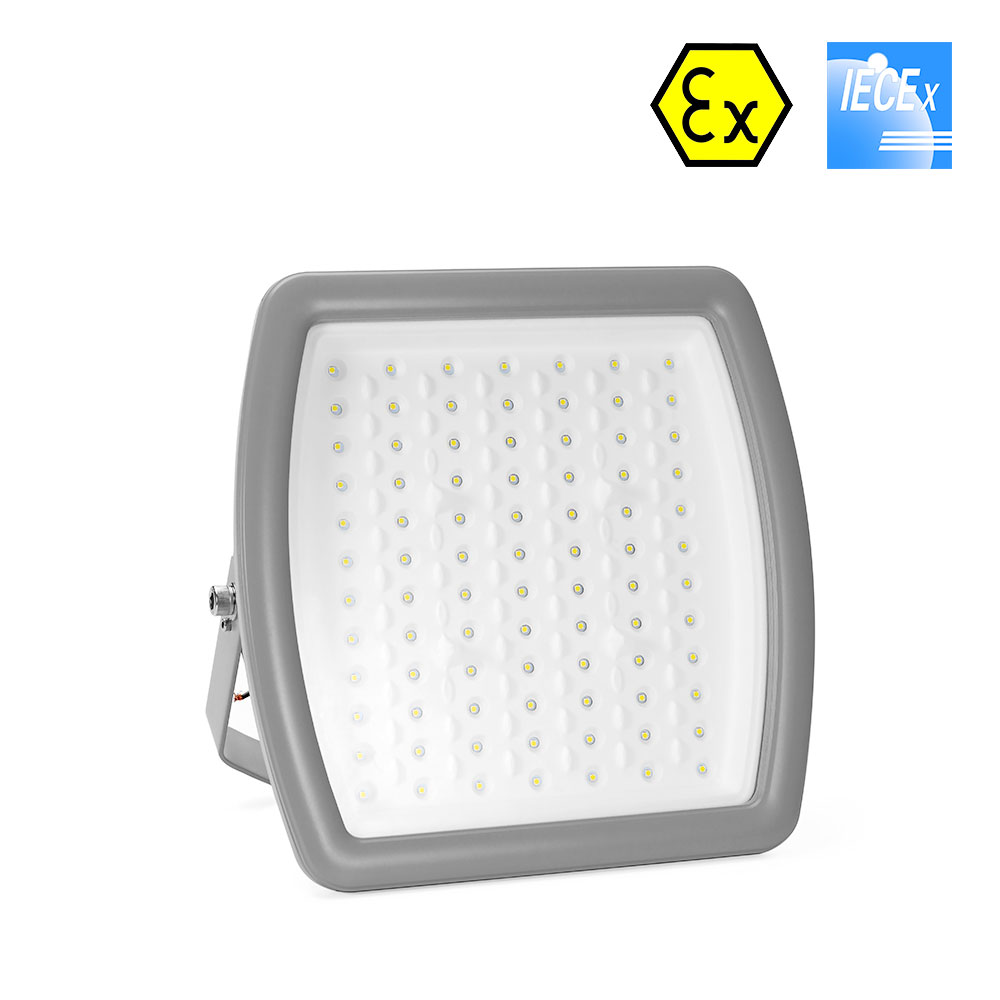

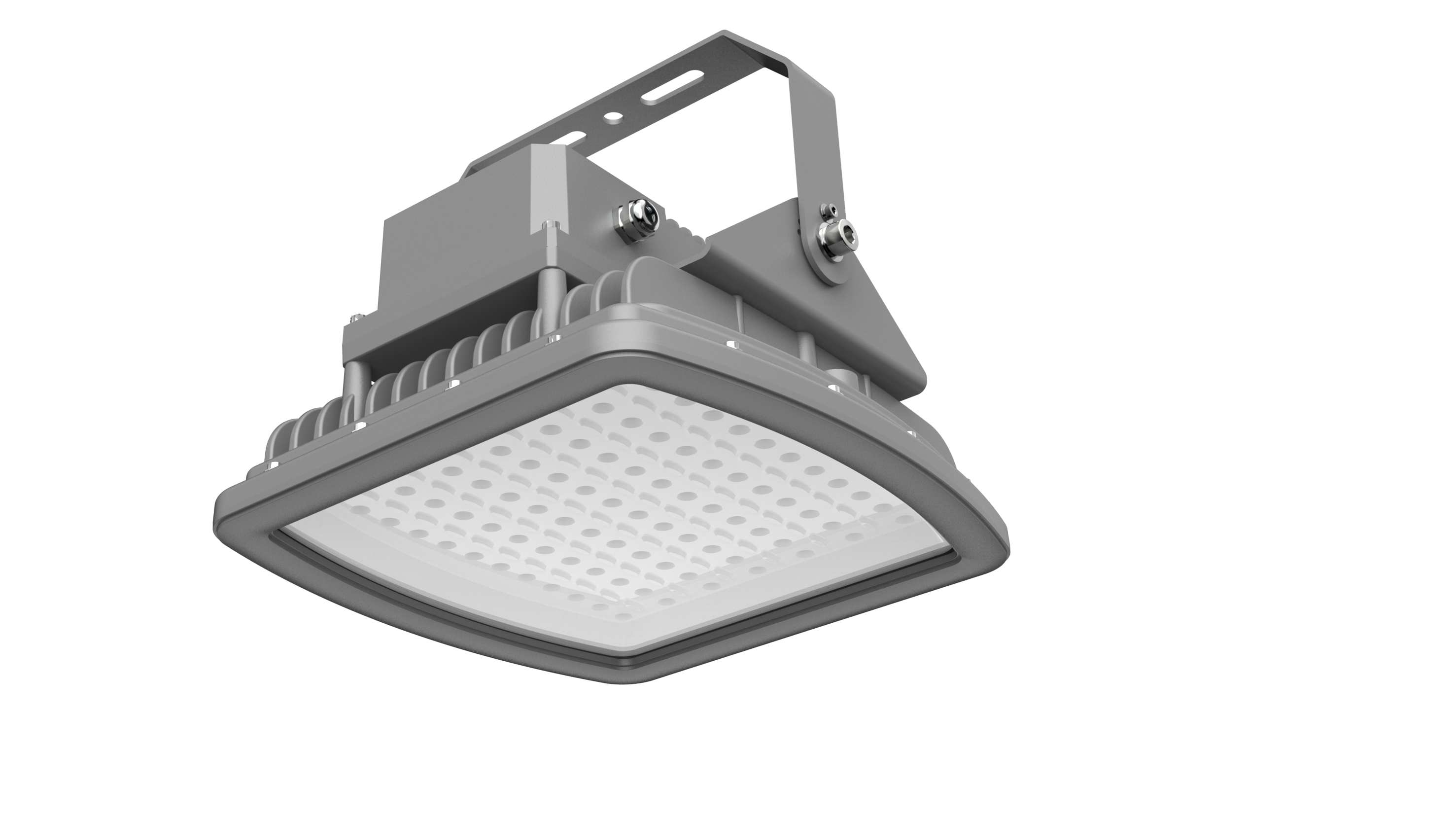

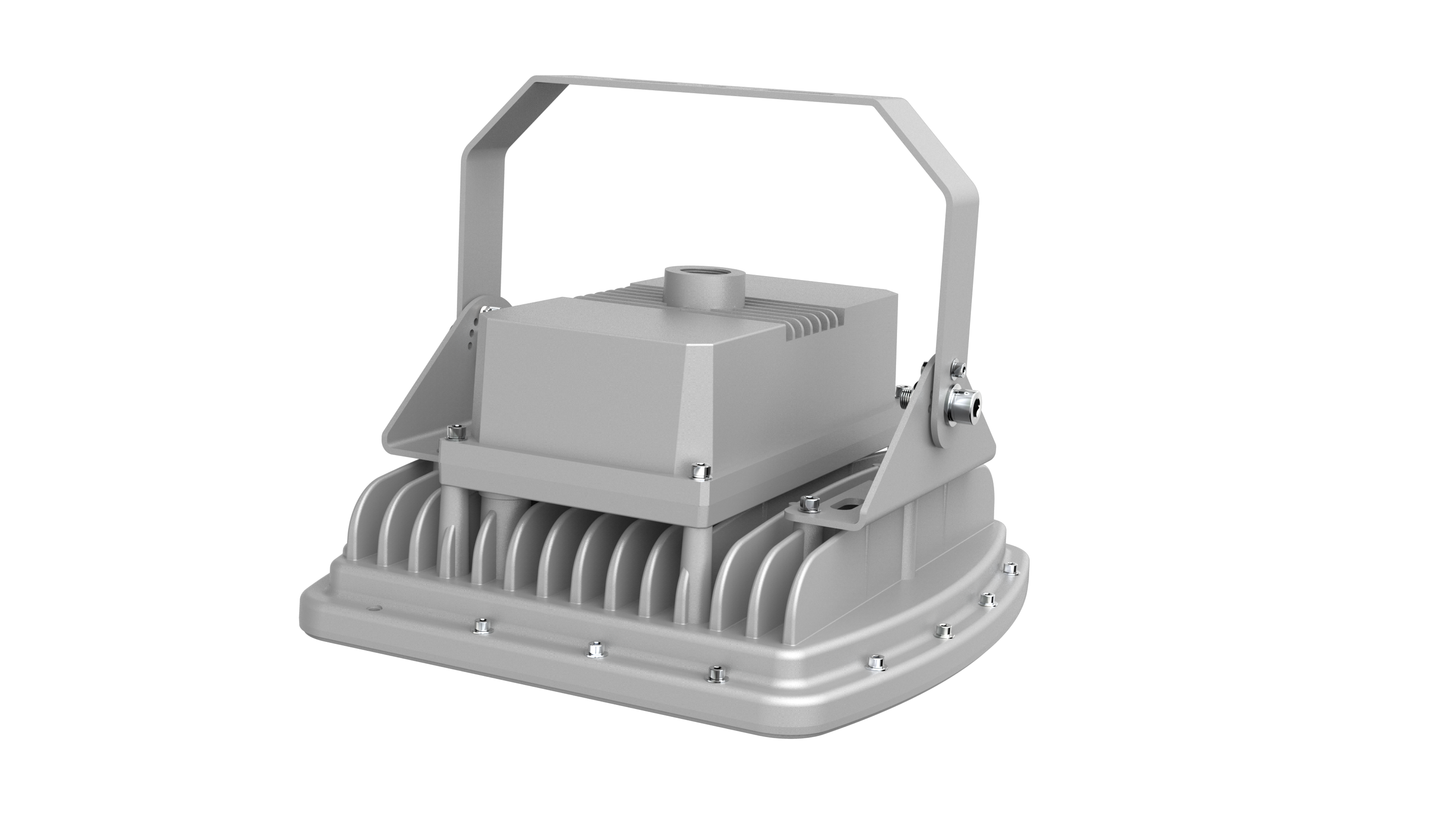

Class 1 Div 2 LED Light - CES-J - 40W - 185W

Product Description


Applications:

• Wastewater treatment, oil and gas refineries, drilling rigs, petrochemical facilities, food and beverage facilities, tunnels, outdoor wall and stanchion mounted general area lighting, and where flammable vapors, gases are present.

• Applies to hazardous locations of Class I, Division 2 with explosive gas atmosphere.

• Applies to marine locations, non-recessed outside type (salt water).

Features


• Industry-leading efficacy: up to 140LPW

• CCT: 3000K-6500K

• CRI:≥70

• -20°C to +40°C Ambient operating temperature

• Protection: IP66；

• Entry Size: M25Χ1.5

• Beam angle:  8°, 15°, 35°, 60°, 90°, 120°

• Housing – Aluminum alloy (ADC12)

• Lens – tempered glass

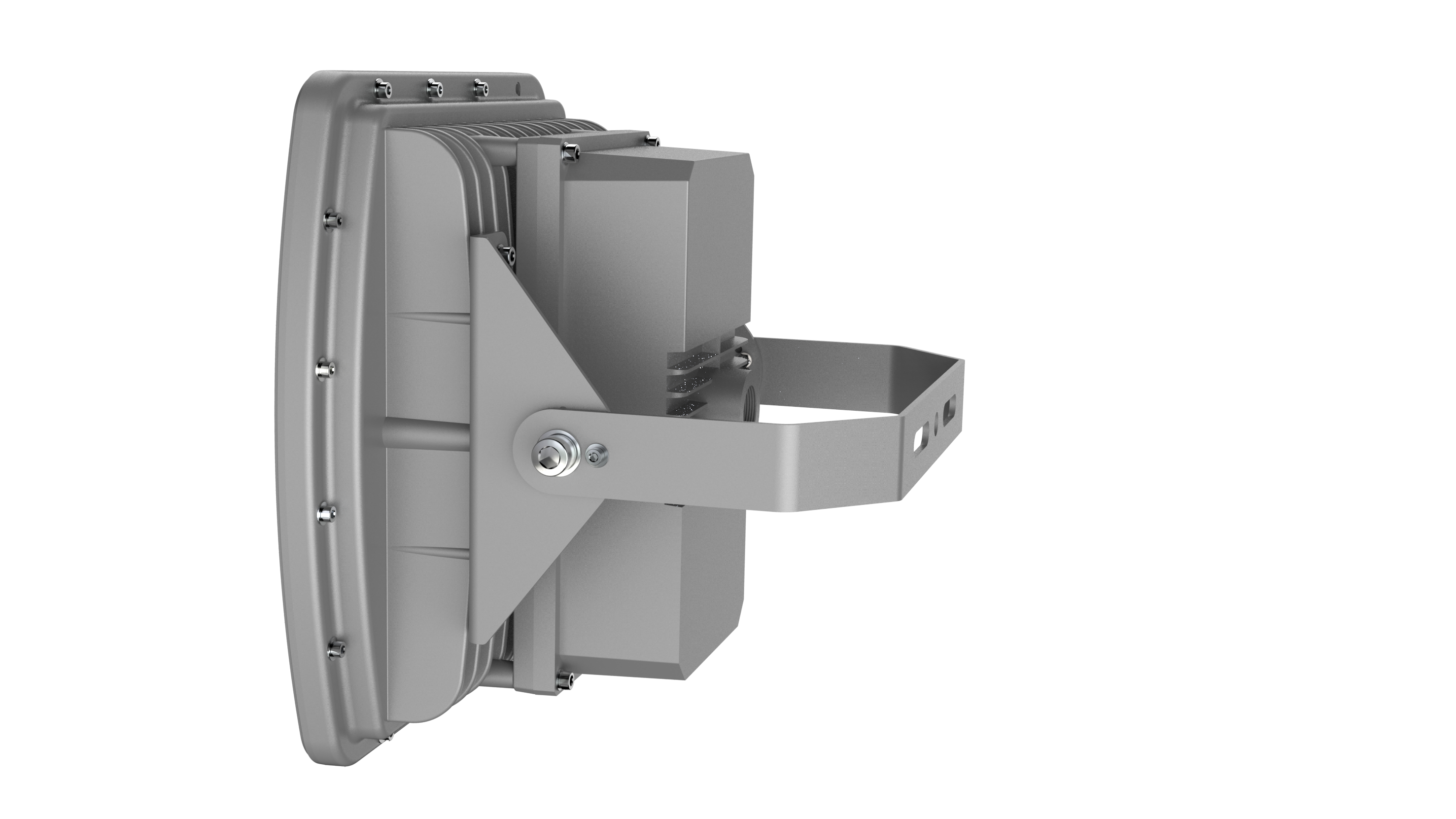

•  Versatile mounting options:

  • Ceiling mount
  • Drop mount
  • Pole mount
  • Wall mount
  • U-Bracket mount

Certifications and compliances

Certifications and compliances for hazardous locations:

NEC/CEC:
• Class I, Division 2, Groups A, B, C and D;

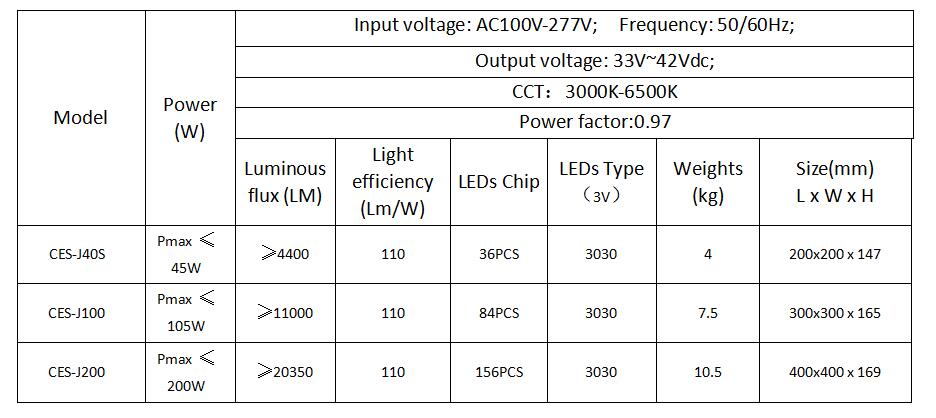

• T-Class: T6 for Models CES-J100 and CES-J40S, T5 for Model CES-J200;

• Damp and wet locations;

• Certification body：UL

• Certification Mark：CUL

• Certificate No：E475887



Standard :

US:  UL 844; UL 1598;

Canada: CSA C22.2 No. 137; CSA C22.2 No. 250.0;


Certifications and compliances for marine locations:

NEC:

• Damp and wet locations;

• Certification body：UL

• Certification Mark：UL

• Certificate No：E495071


Standard :

US:  UL 1598A; UL 1598;

Safety precautions

CUL for Hazloc:

 SUITABLE FOR WET LOCATIONS;

THIS LUMINAIRE IS ACCEPTABLE FOR OPERATION IN AMBIENT CONDITIONS NOT EXCEEDING 40°C;

FOR SUPPLY CONNECTION, USE WIRES RATED FOR AT LEAST 90°C;

NO SERVICEABLE PARTS” OR “NO USER SERVICEABLE PARTS. DO NOT OPEN FOR CLEANING.;


CAUTION - ″TO REDUCE THE RISK OF IGNITION OF HAZARDOUS ATMOSPHERES, DISCONNECT THE LUMINAIRE FROM THE SUPPLY CIRCUIT BEFORE OPENING. KEEP TIGHTLY CLOSED WHEN IN OPERATION.″;

THIS PRODUCT MUST BE INSTALLED IN ACCORDANCE WITH THE APPLICABLE INSTALLATION CODE BY A PERSON FAMILIAR WITH THE CONSTRUCTION AND OPERATION OF THE PRODUCT AND THE HAZARDS INVOLVED;

“CAUTION – RISK OF SHOCK” and “DISCONNECT POWER BEFORE SERVICING”.


UL for marine locations:

 OUTSIDE TYPE or OUTSIDE TYPE (SALT WATER);
