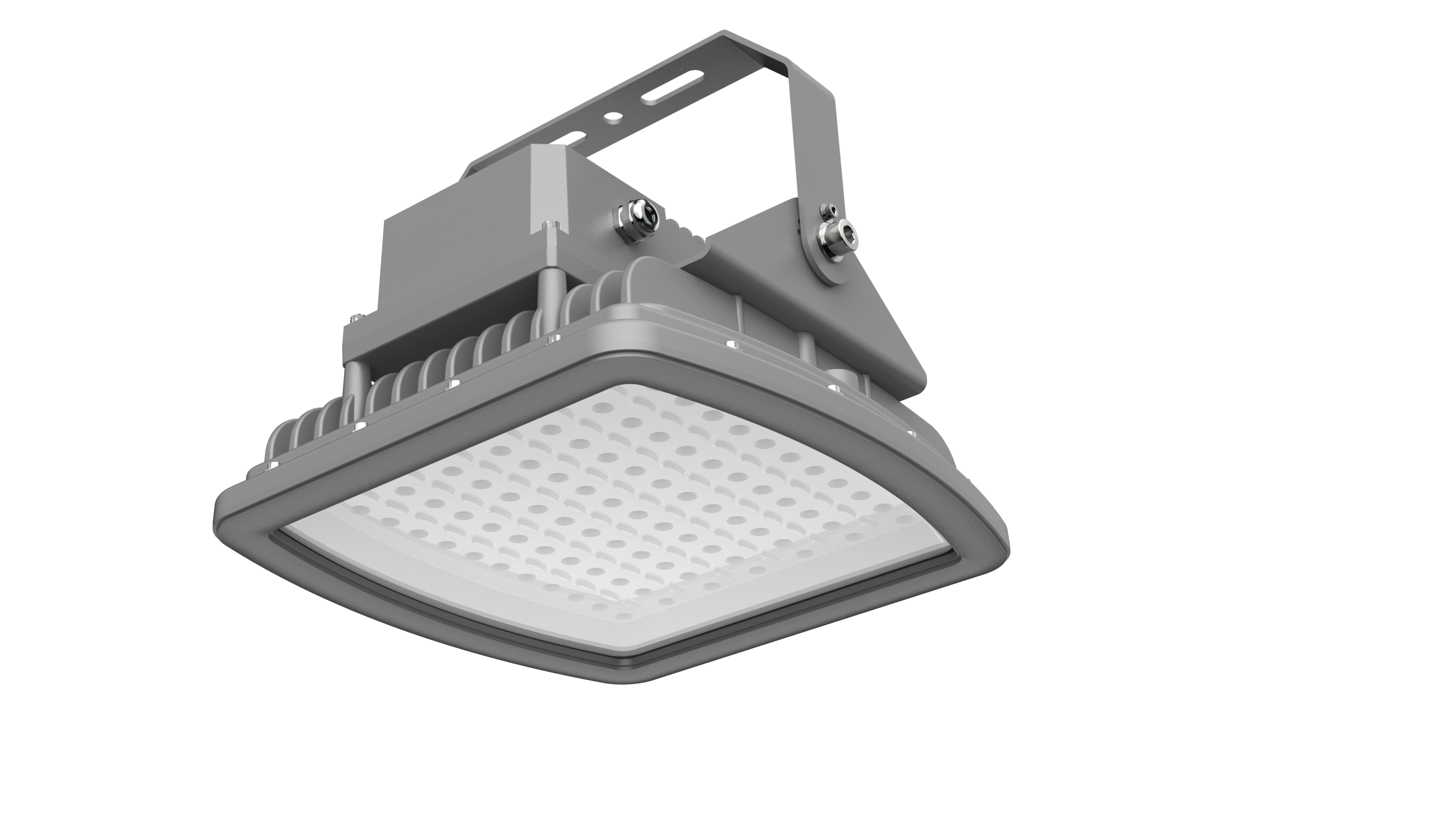

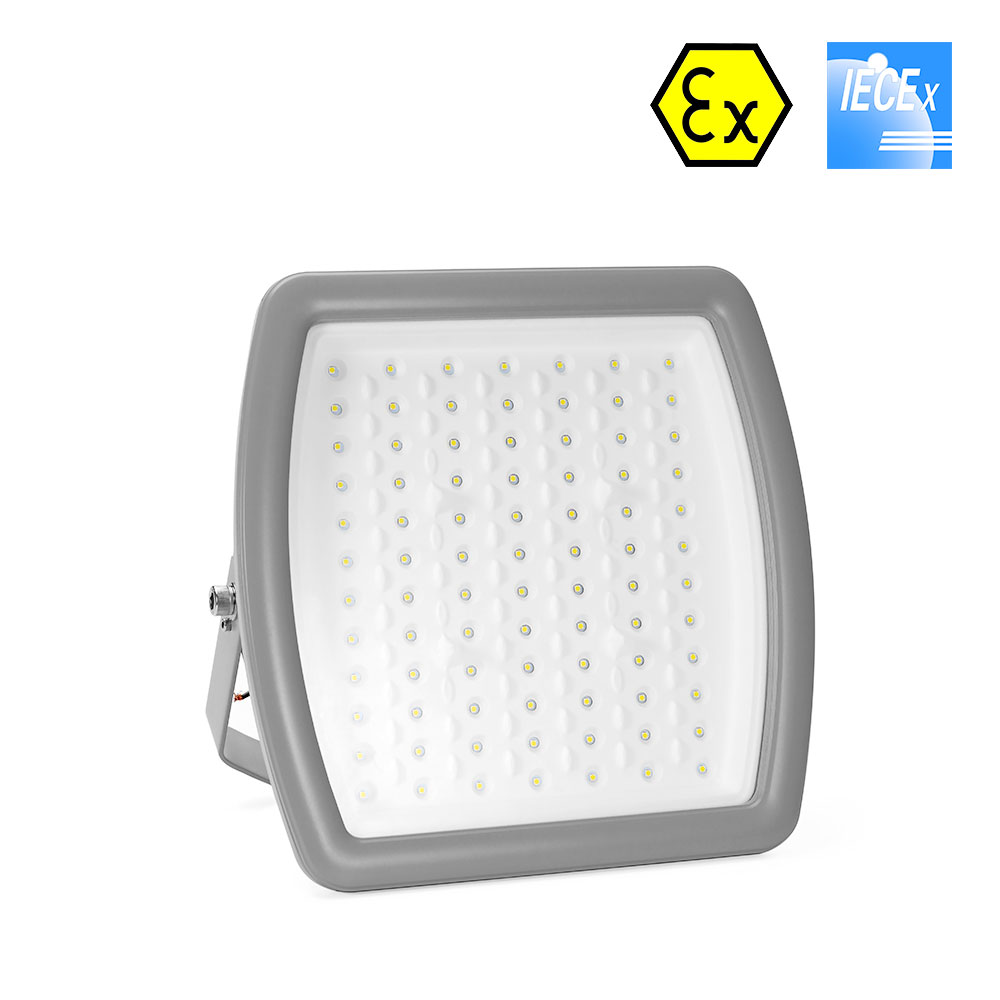

Explosion Proof LED Luminaires CES-J

Product Description


Applications:

• Wastewater treatment, oil and gas refineries, drilling rigs, petrochemical facilities, food and beverage facilities, tunnels, outdoor wall and stanchion mounted general area lighting, and where flammable vapors, gases, ignitable dusts, fibers or flyings are present.

• Applies to hazardous locations of Zone 1 and Zone2 with explosive gas atmosphere.

• Applies to hazardous locations of Zone 21 and Zone22 with explosive dust atmosphere.

Features


• Industry-leading efficacy: up to 140LPW

• CCT: 3000K-6500K

• CRI:≥70

• -20°C to +40°C Ambient operating temperature

• Protection: IP66；

• Entry Size: M25Χ1.5

• Beam angle:  8°, 15°, 35°, 60°, 90°, 120°

• Housing – Aluminum alloy (ADC12)

• Lens – tempered glass

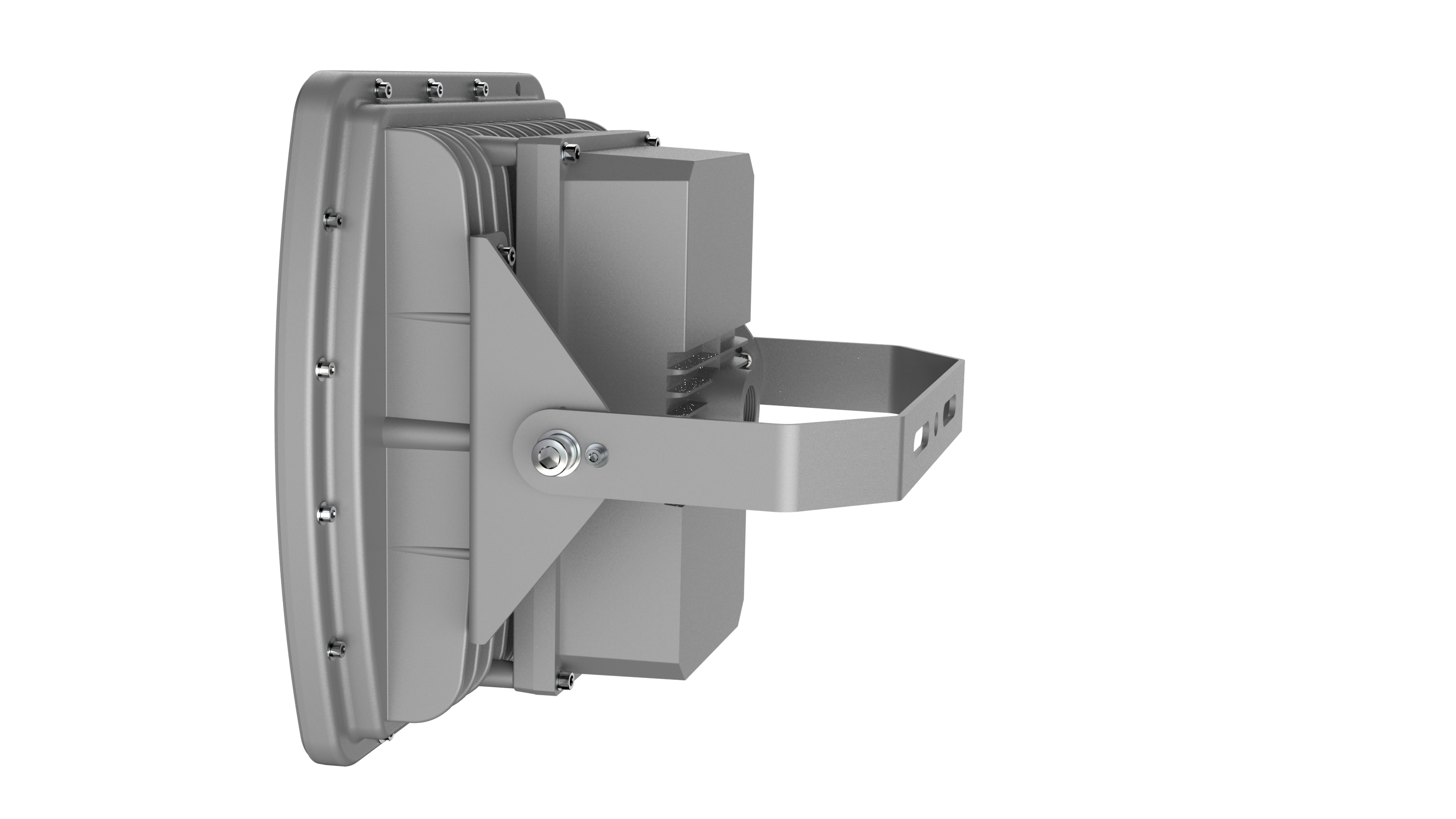

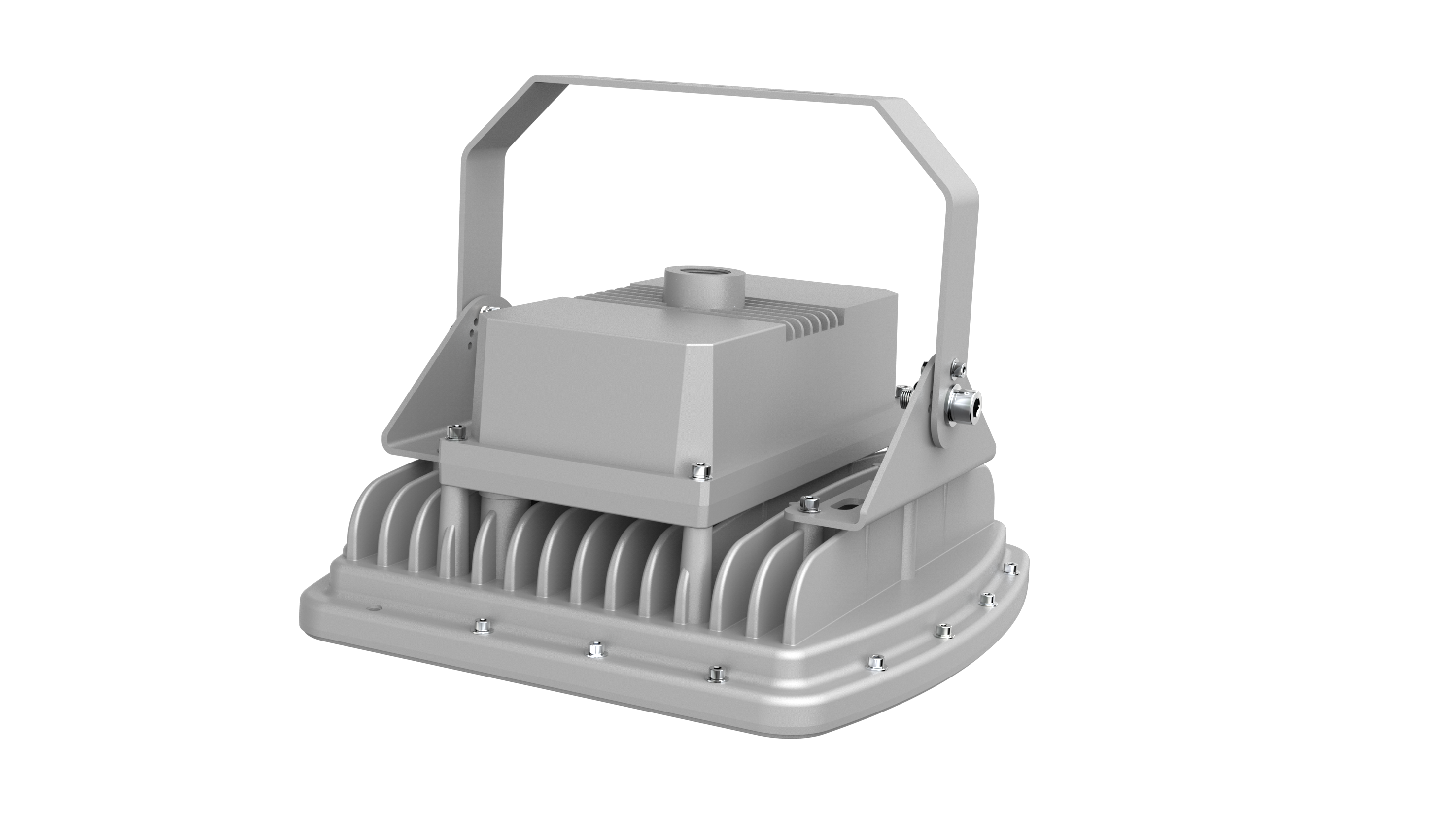

•  Versatile mounting options: Ceiling mount / Drop mount / Pole mount / Wall mount / U-Bracket mount

Certifications and compliances


IECEx:


• Ex ec IIC T4 Gc

• Certificate No：IECEx UL 18.0046

Standard: IEC 60079-0: 2011 ; IEC 60079-7: 2017;



ATEX:

•II 2G Ex eb mb op is IIC T4 Gb;

•II 2D Ex op is tb IIIC T95°C Db;

• Certificate No：IEP 19ATEX 0714

Standard: EN 60079-0: 2013 ; EN 60079-7: 2015 ; EN 60079-18: 2015 ; EN 60079-28: 2015 ; EN 60079-31：2014;

Safety precautions

IECEx / ATEX :

o “WARNING – DO NOT OPEN WHEN ENERGIZED”

o “WARNING – DO NOT OPEN WHEN AN EXPLOSIVE ATMOSPHERE IS PRESENT”

o “WARNING – ONLY USE CABLES SUITABLE FOR 85°C”

o End user shall use certified cable gland or conduit with suitable type of protection for final installation purpose.

o External earthing wire shall be connected when used and the cross-sectional areashall be more than 4mm2 or 10AWG.

o Under rating condition, maximum temperature on the luminaire’s shell shall not be

   higher than 95℃ for T4.Temperature at cable inlet shall not be higher than allowable limit of the cable applied, to ensure the cable operation normally.
