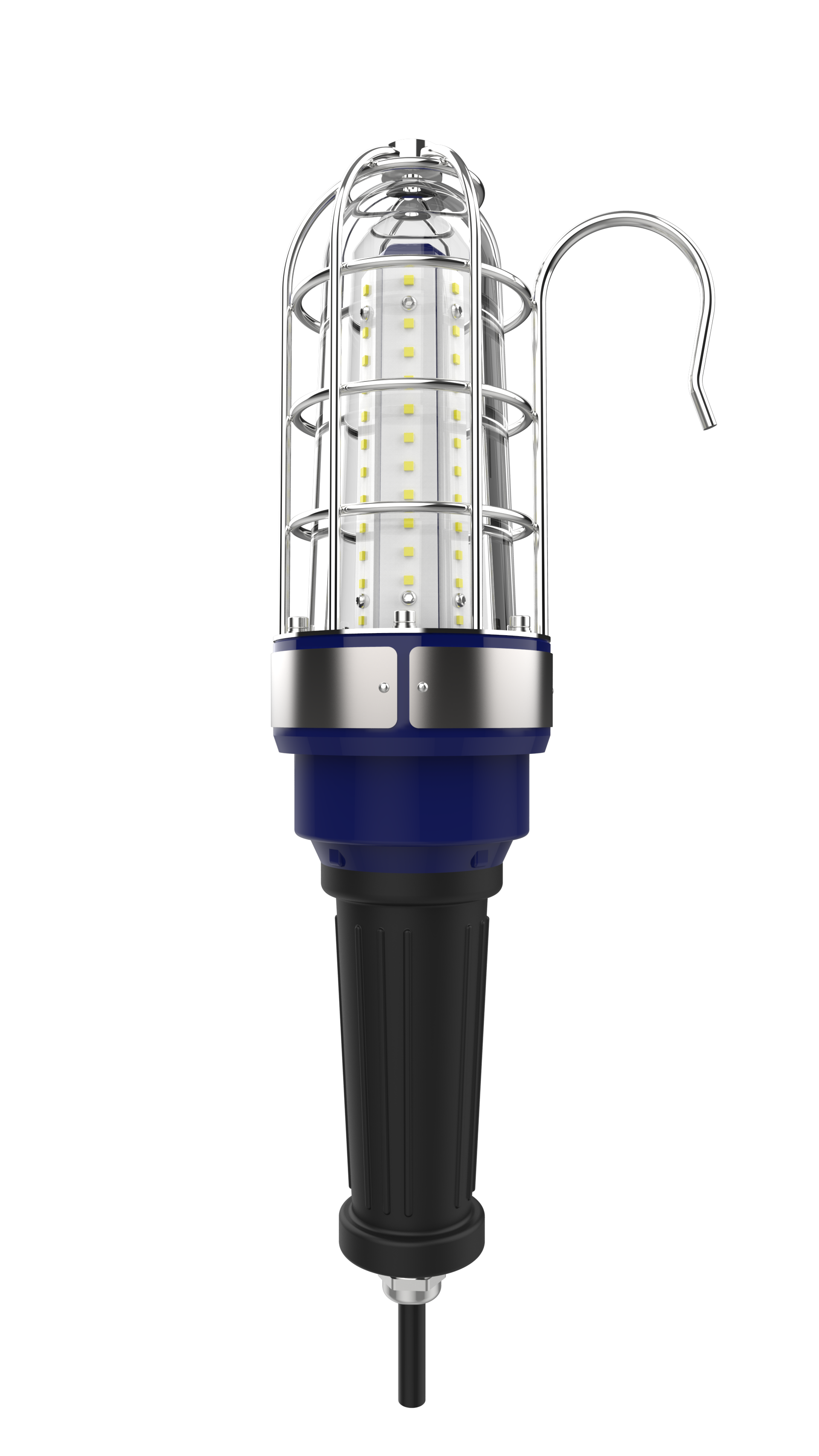

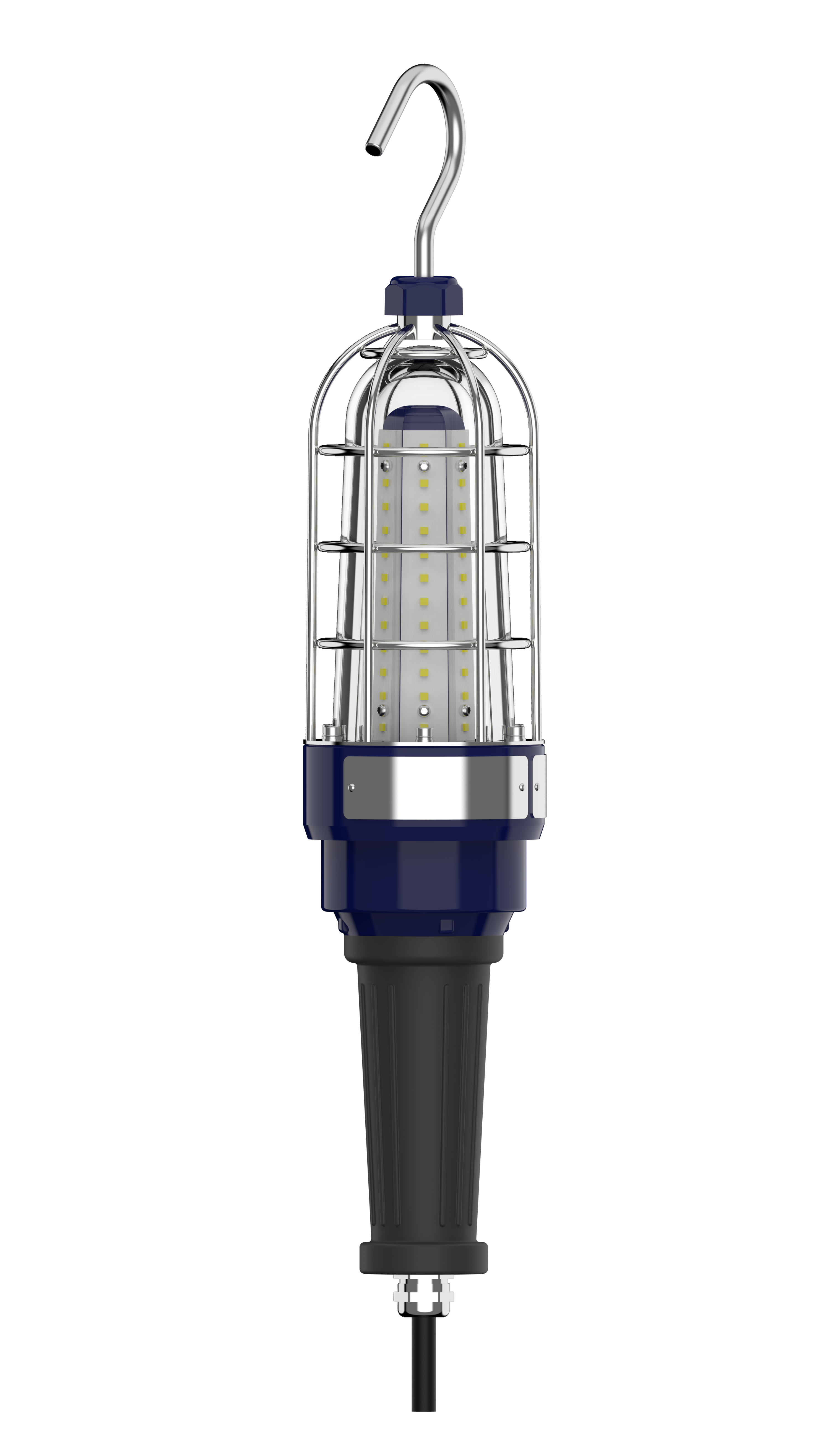

Explosion Proof LED Hand Lamp

Product Description


Applications:

•The lights in this series are capable of offering portable illumination for hazardous locations and temporary projects, such as quick plant turnarounds, MRO projects, oil fields, marine sites and tank cleaning etc. Our Portable Electric Hand Lamps are designed for Zone 1, Zone 2, Zone 21, Zone22 environments.

Features

• Industry-leading efficacy: up to 130 LPW;

• CCT: 3000K/4000K/6500K;

• -20°C to +50°C ambient operating temperature;

• 5 Year Warranty;

• Prevent drop damage;

• Swivel hook for hanging and hands free operation;

• Entry: M20X1.5;

• Housing –Aluminum alloy (ADC12 and 6063);

• Lens –tempered glass;

Certifications and compliances


IECEx:

• Ex db eb IIC T6 Gb;

• Ex tb IIIC T 80°C Db;

• Certificate No：IECEx SEV 20.0003X

IECEx: IEC 60079-0-2017; IEC 60079-1-2014; IEC 60079-7-2017; IEC 60079-31-2013;

ATEX:

• II 2G Ex db eb IIC T6 Gb;

• II 2D Ex tb IIIC T 80°C Db;

• Certificate No：SEV 20 ATEX 0369 X

ATEX: EN IEC 60079-0-2018; EN 60079-1-2014; EN 60079-7-2015;EN 60079-31-2014;

Warning

IECEx & ATEX :

l  “WARNING – DO NOT OPEN WHEN ENERGIZED”

l “WARNING – DO NOT OPEN WHEN AN EXPLOSIVE ATMOSPHERE IS PRESENT”；

l “WARNING – POTENTIAL ELECTROSTATIC CHARGING HAZARD - SEE INSTRUCTIONS”

l THE FLAMEPROOF JOINTS ARE NOT INTENDED TO BE REPAIRED.



l End user shall use certified cable gland type of protection for final installation purpose.

l Under rating condition, maximum temperature on the luminaire’s shell shall not be higher than 80℃ for T6.Temperature at cable inlet shall not be higher than allowable limit of the cable applied, to ensure the cable operation normally. The branch point is 60.1℃ and cable entry point is 52.0℃.

l For handle, there is “POTENTIAL ELECTROSTATIC CHARGING HAZARD”. When used in the explosive environment, please touch with an insulating object, wipe with a damp cloth.
