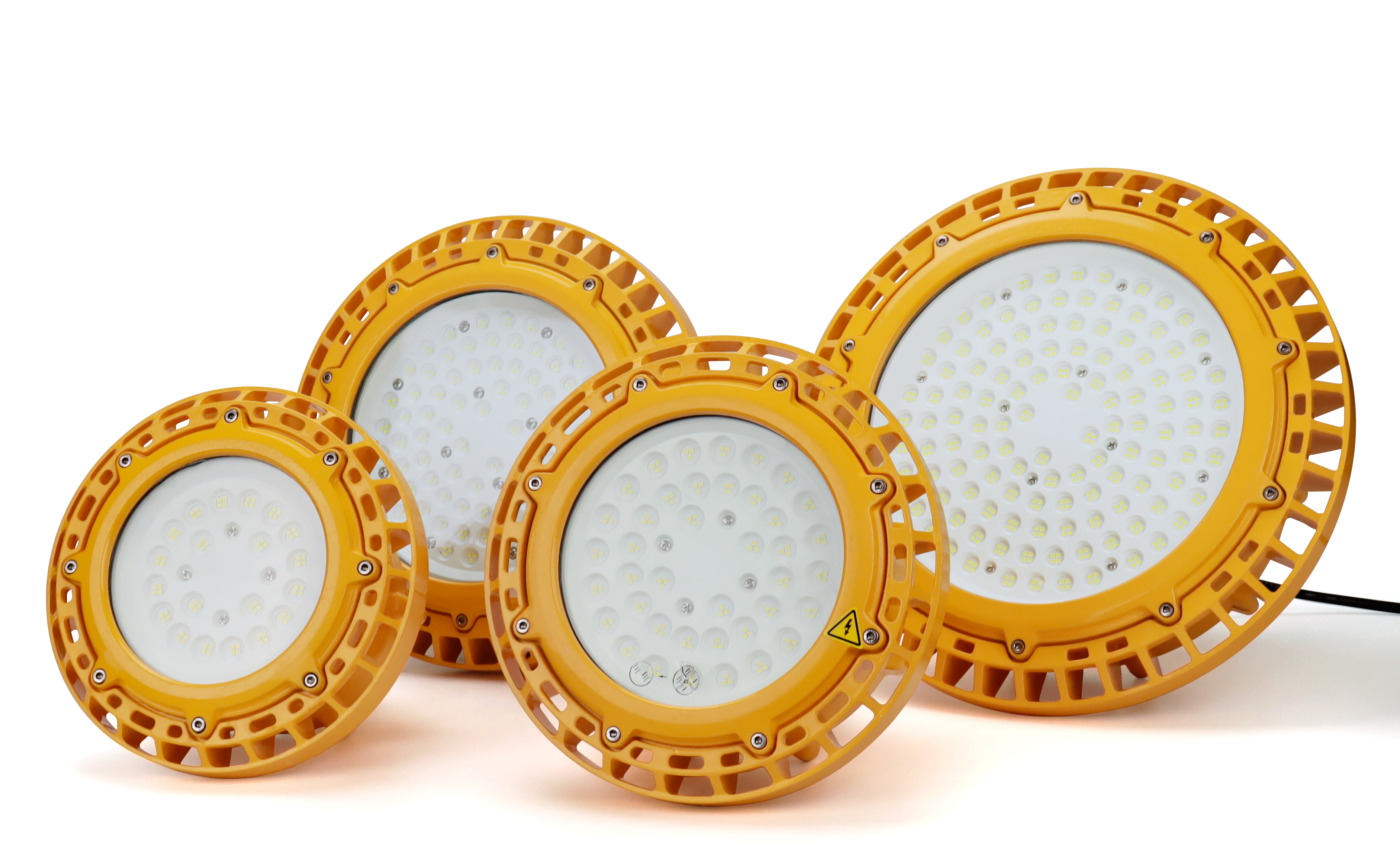

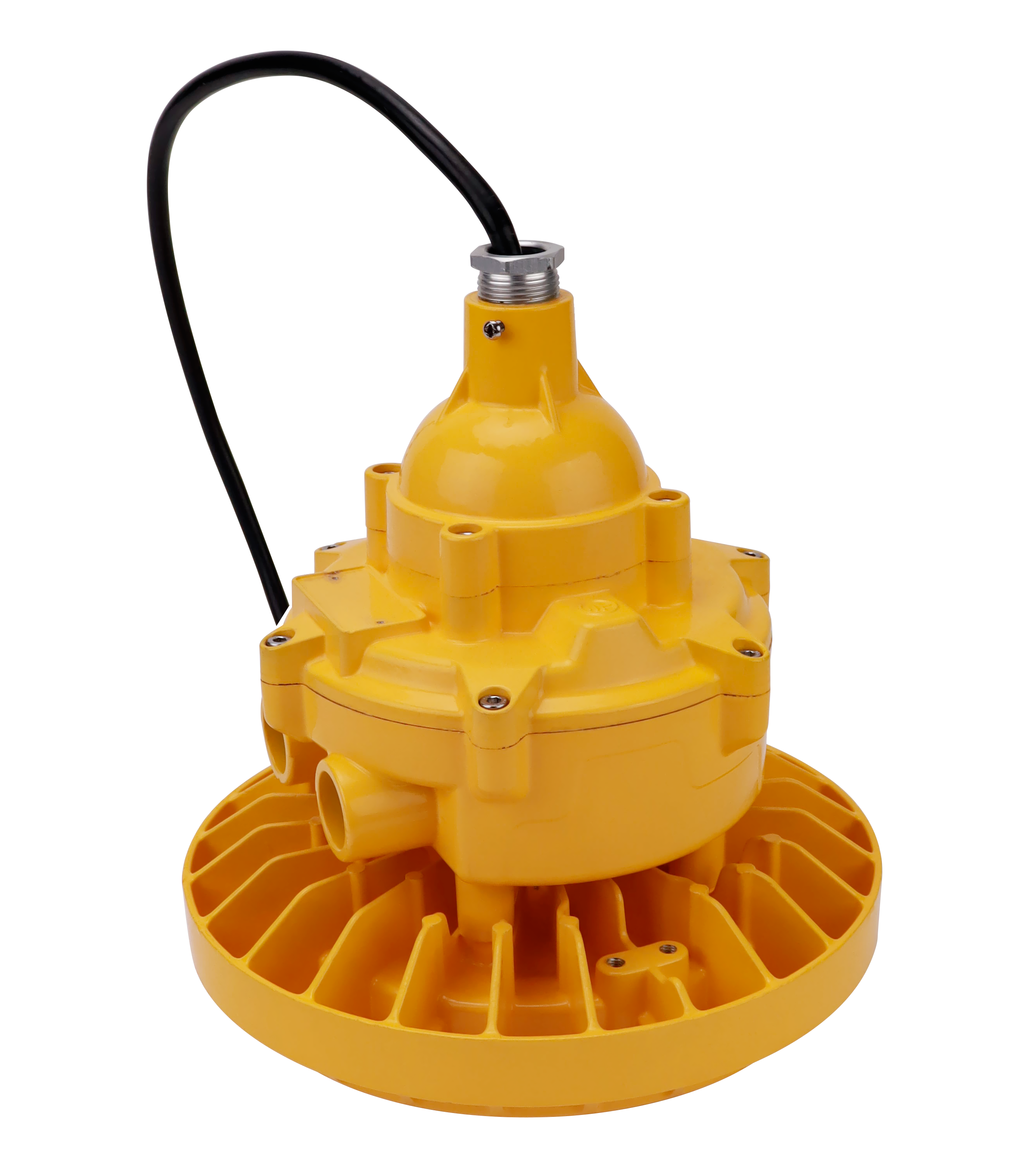

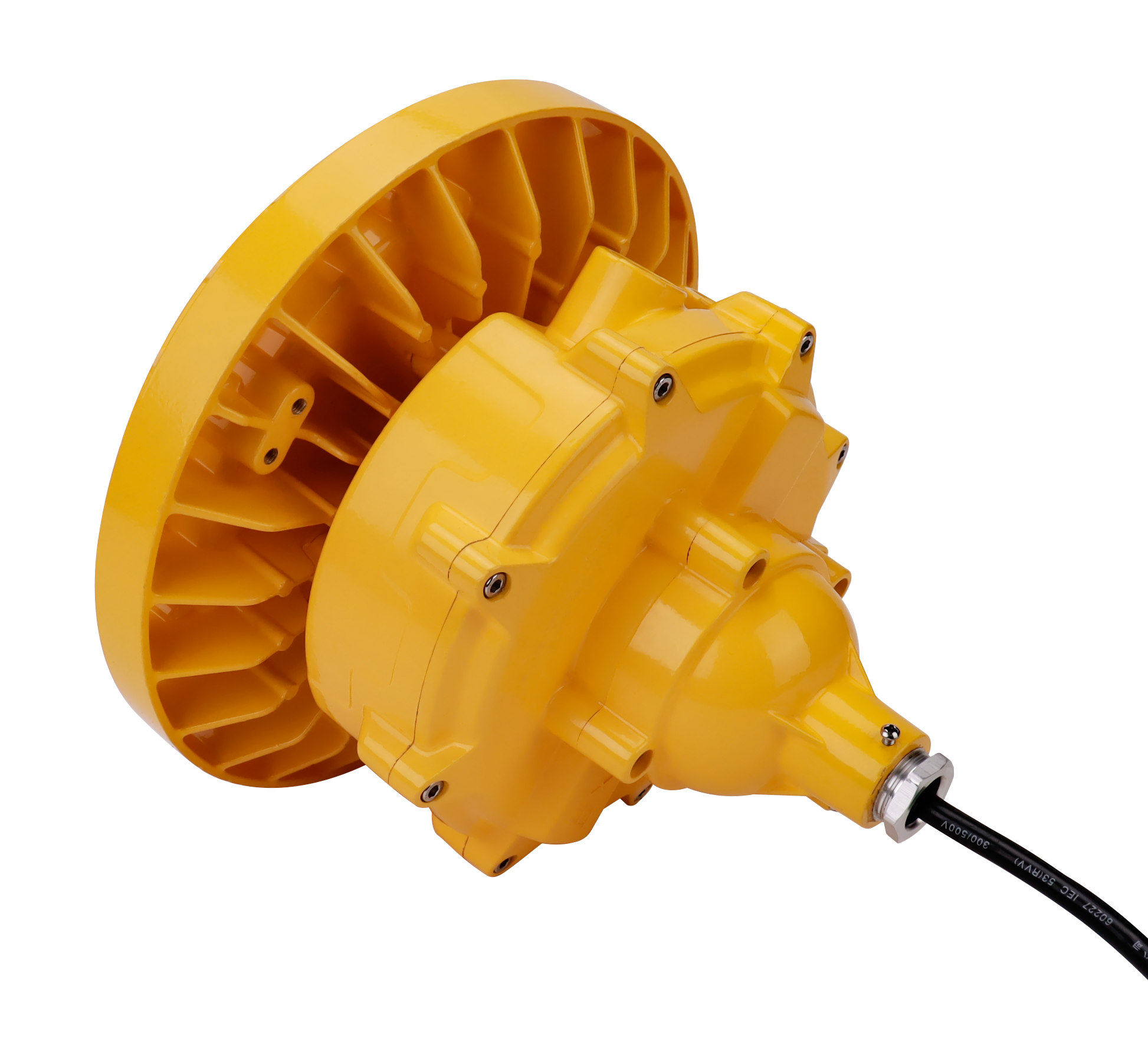

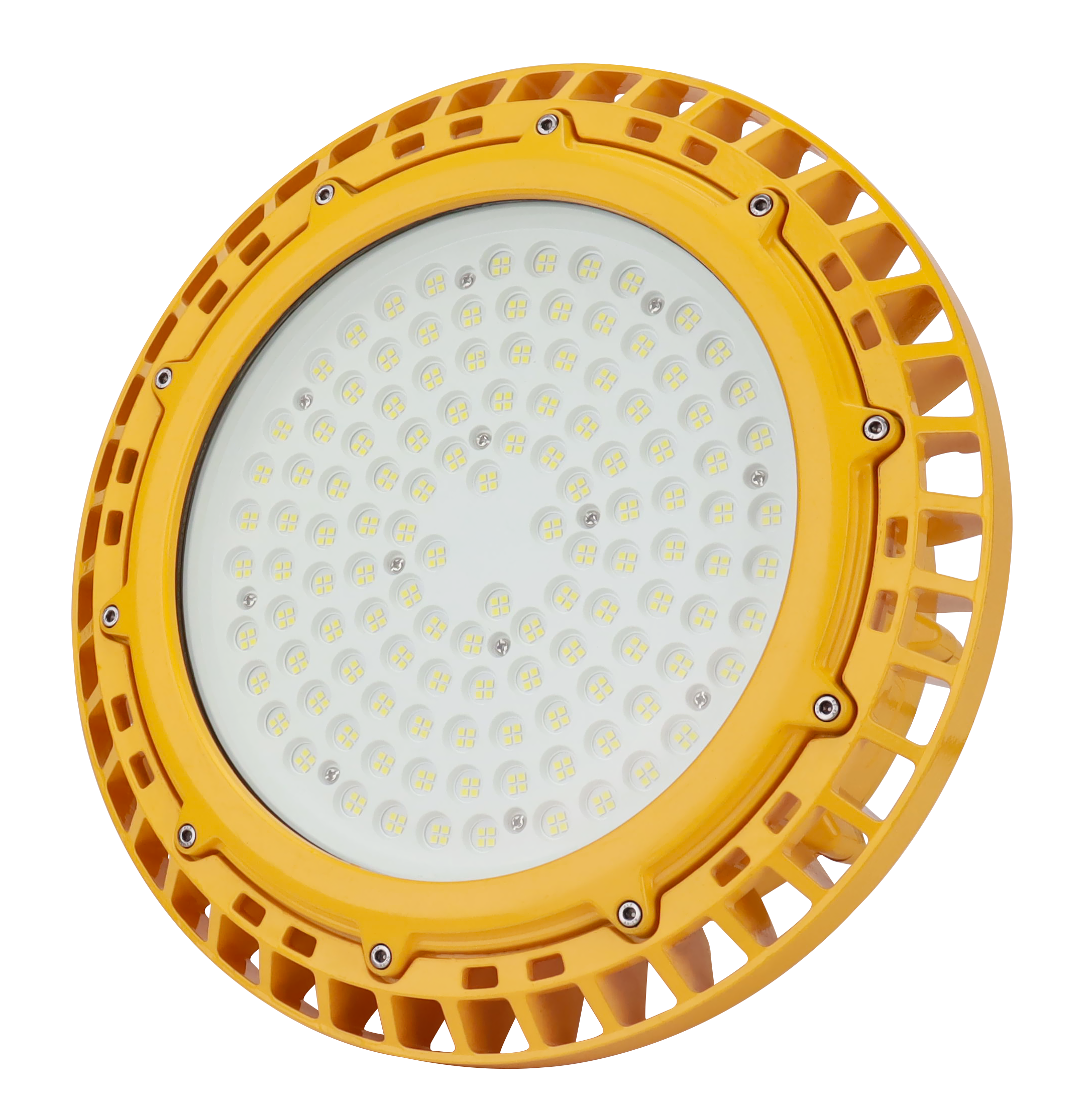

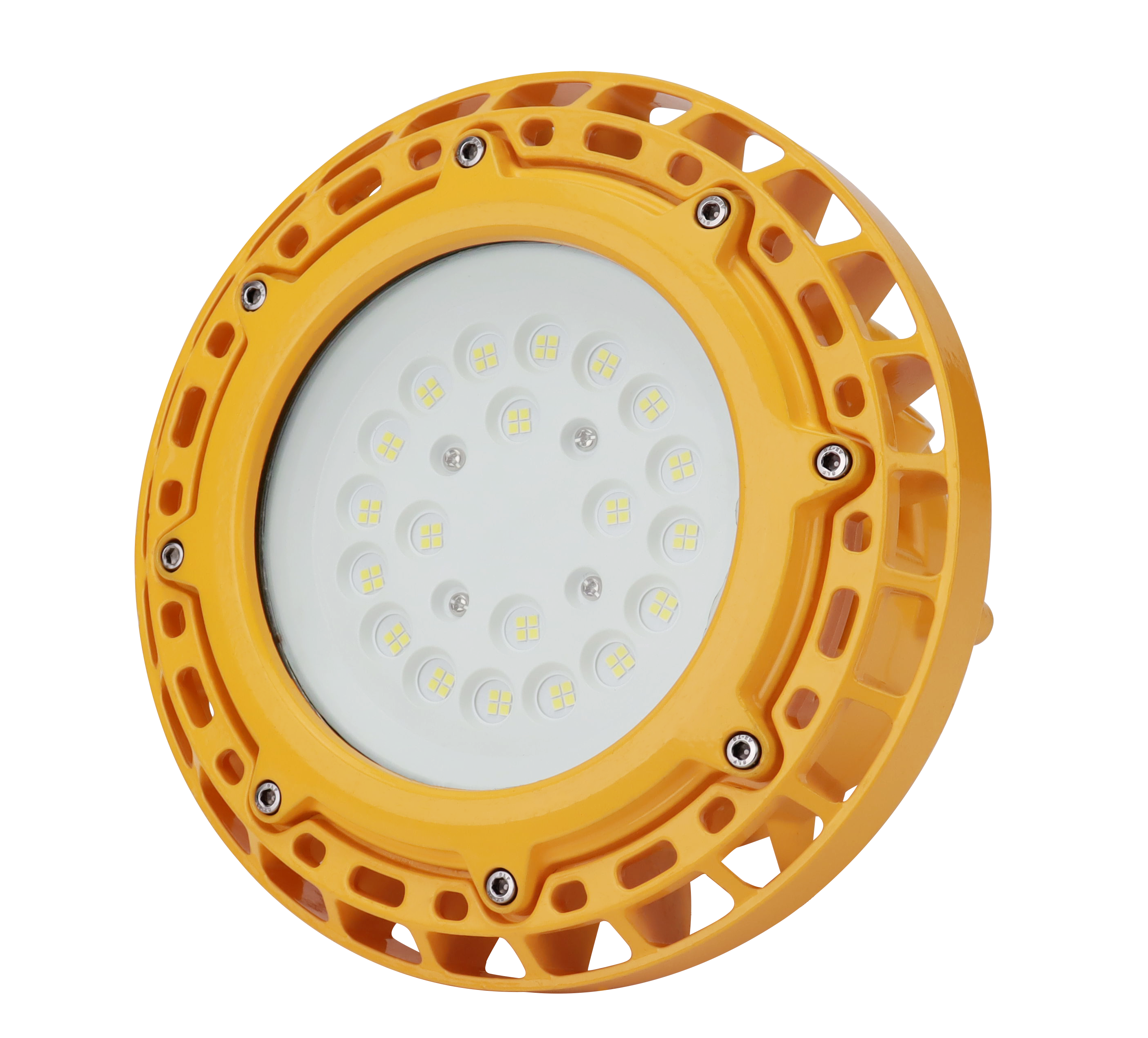

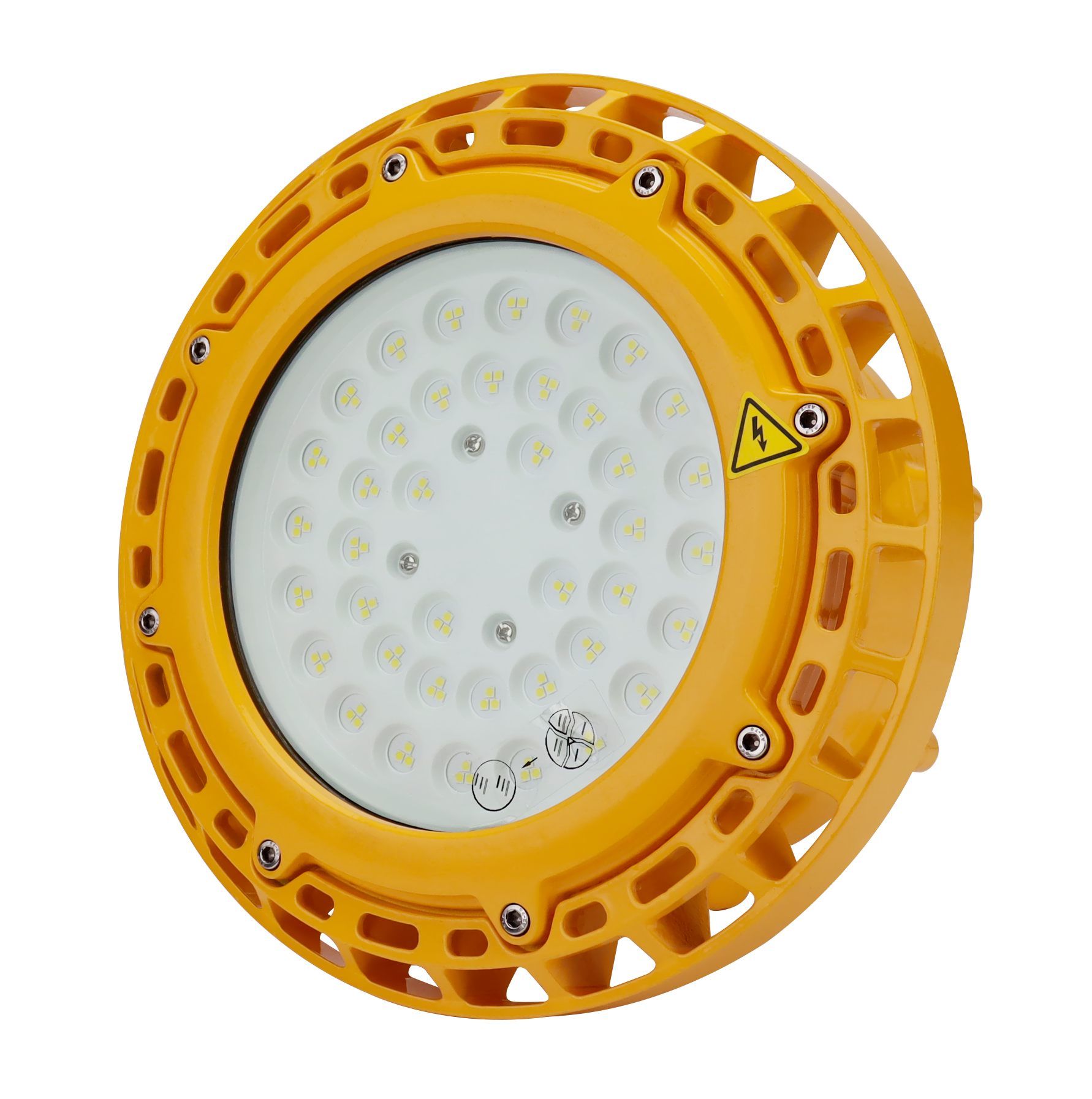

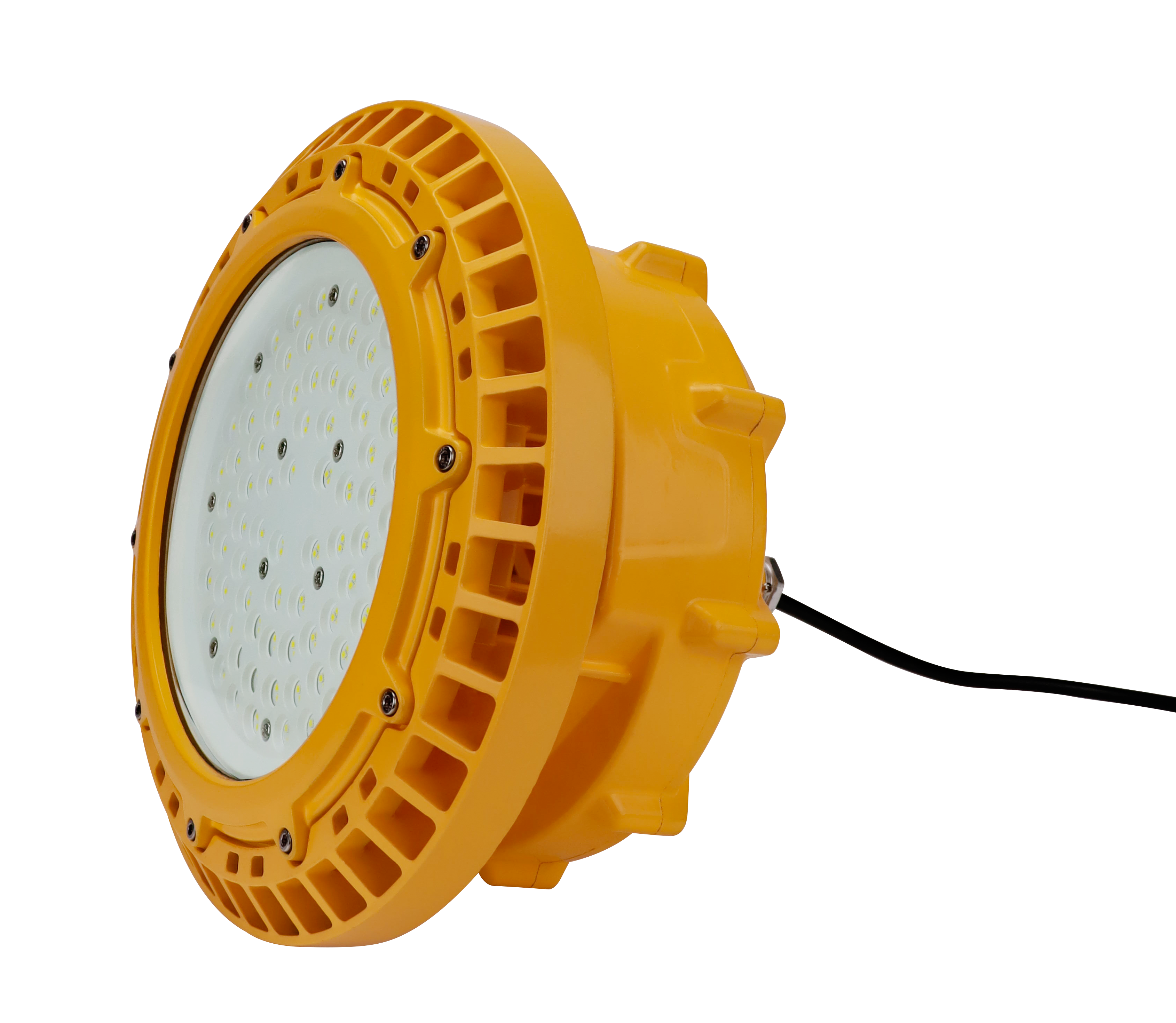

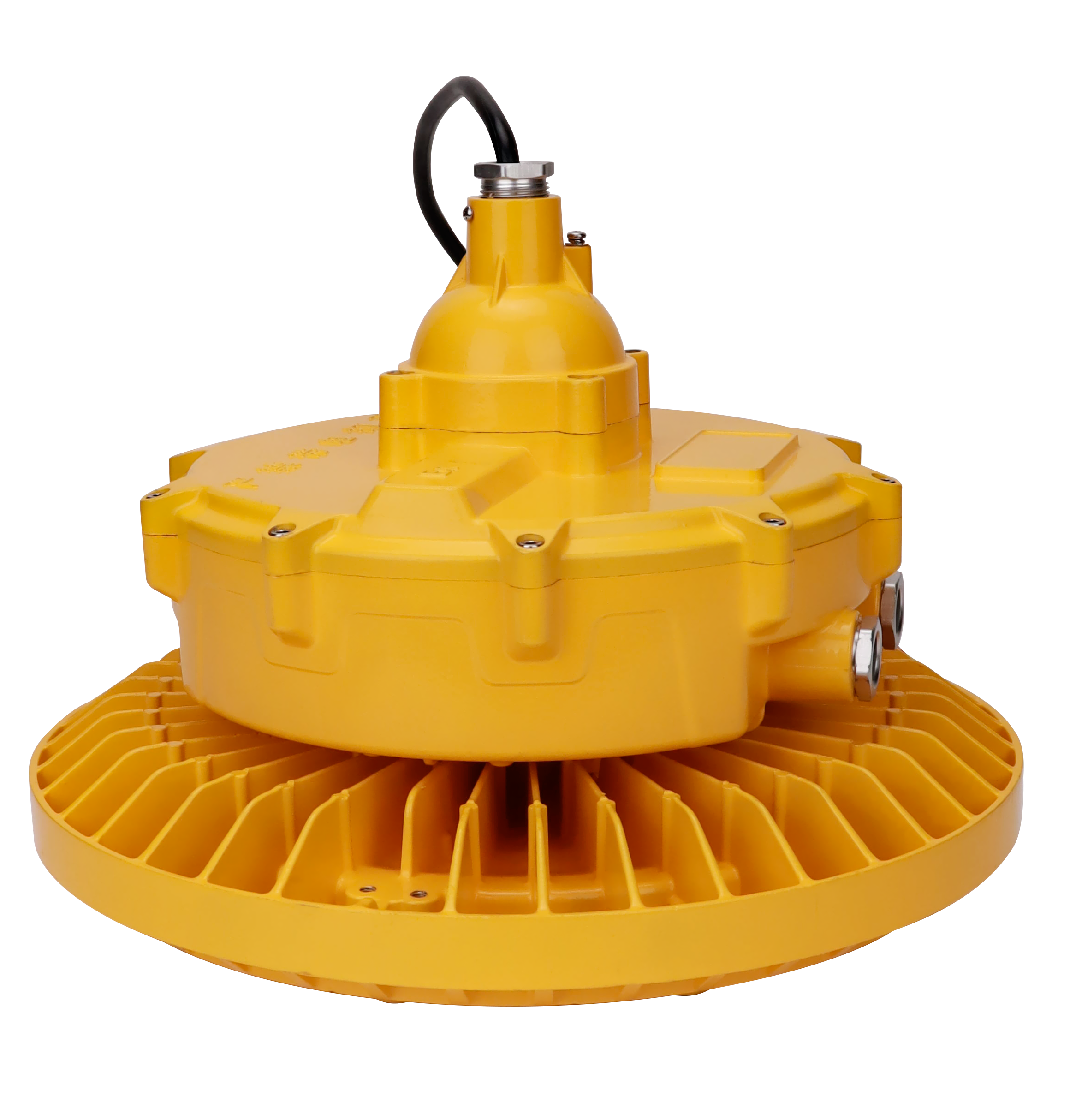

Explosion Proof LED Light CES-EX-D-GBX (up to 400W)
Product Description
Applications:
• Wastewater treatment, oil and gas refineries, drilling rigs, petrochemical facilities, food and beverage facilities, tunnels, outdoor or indoor mounted general area lighting, and where flammable vapors, gases, ignitable dusts, fibers or flyings are present.
• Applies to hazardous locations of Zone 1 and Zone2 with explosive gas atmosphere.
• Applies to hazardous locations of Zone 21 and Zone22 with explosive dust atmosphere.
Features
• Industry-leading efficacy: up to 140LPW
• CCT: 3000K-6500K
• CRI:≥70
• -40°C to +45°C /50°C /55°C ambient operating temperature
• Protection: IP66；
• Entry Size: M25Χ1.5
• Beam angle: 30°, 60°, 90°, 105°, 120°.
• Housing – Aluminum alloy (ADC12)
• Lens – tempered glass
• 5 years warranty
• Versatile mounting options: Ceiling mount / Drop mount / Wall mount / U-Bracket mount
Certifications and compliances
ATEX:
• II 2G Ex db IIC T4/T5/T6 Gb;
• II 2D Ex tb IIIC T130℃ Db;
• Certificate No：TUv CY 24 ATEX 0206973 X
Safety precautions
IECEx & ATEX :
o “CAUTION-USEFASTENER WITH YIELD STRESS≥ 640 MPa”
o “WARNING – DO NOT OPEN WHEN ENERGIZED”
o “WARNING – DO NOT OPEN WHEN AN EXPLOSIVE ATMOSPHERE IS PRESENT”
o " WARNING - DETAILED TEMPERATURE CLASS - SEE INSTRUCTIONS”
o “THE FLAMEPROOF JOINTS ARE NOT INTENDED TO BE REPAIRED.”
o End user shall use certified cable gland or conduit with suitable type of protection for final installation purpose.
o External earthing wire shall be connected when used and the cross-sectional areashall be more than 4mm2 or 10AWG.
o Under rating condition, maximum temperature on the luminaire’s shell shall not be higher than 104℃ for T4.Temperature at cable inlet shall not be higher than allowable limit of the cable applied, to ensure the cable operation normally. The branch point is 93.7℃ and cable entry point is 91.8℃
