Explosion Proof LED Luminaires CES-EX-LN-02P

Product Description

Applications:

• Wastewater treatment, oil and gas refineries, drilling rigs, petrochemical facilities, food and beverage facilities, tunnels, outdoor or indoor mounted general area lighting, and where flammable vapors, gases, ignitable dusts, fibers or flyings are present.

• Applies to hazardous locations of Zone 1 and Zone2 with explosive gas atmosphere.

• Applies to hazardous locations of Zone 21 and Zone22 with explosive dust atmosphere.



Features


• Industry-leading efficacy: up to 140LPW

• Light Source: 3030 LEDs

• CCT: 3000K-6500K

• CRI:≥70

• -40°C to +45°C /50°C /55°C ambient operating temperature

• Protection: IP66

• Entry Size: M25Χ1.5

• Beam angle: 120°

• Housing – Aluminum alloy (ADC12)

• Lens – PC cover

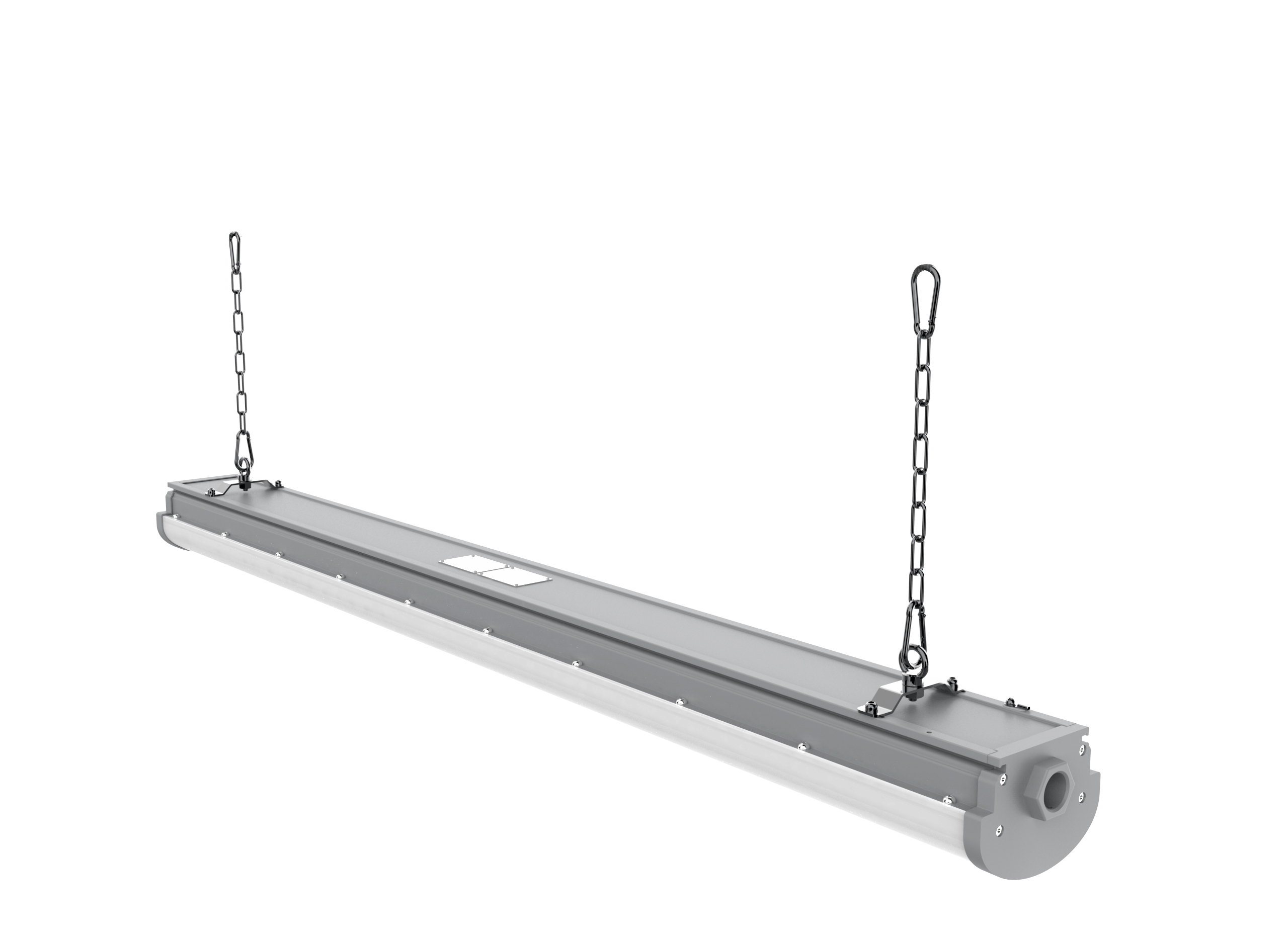

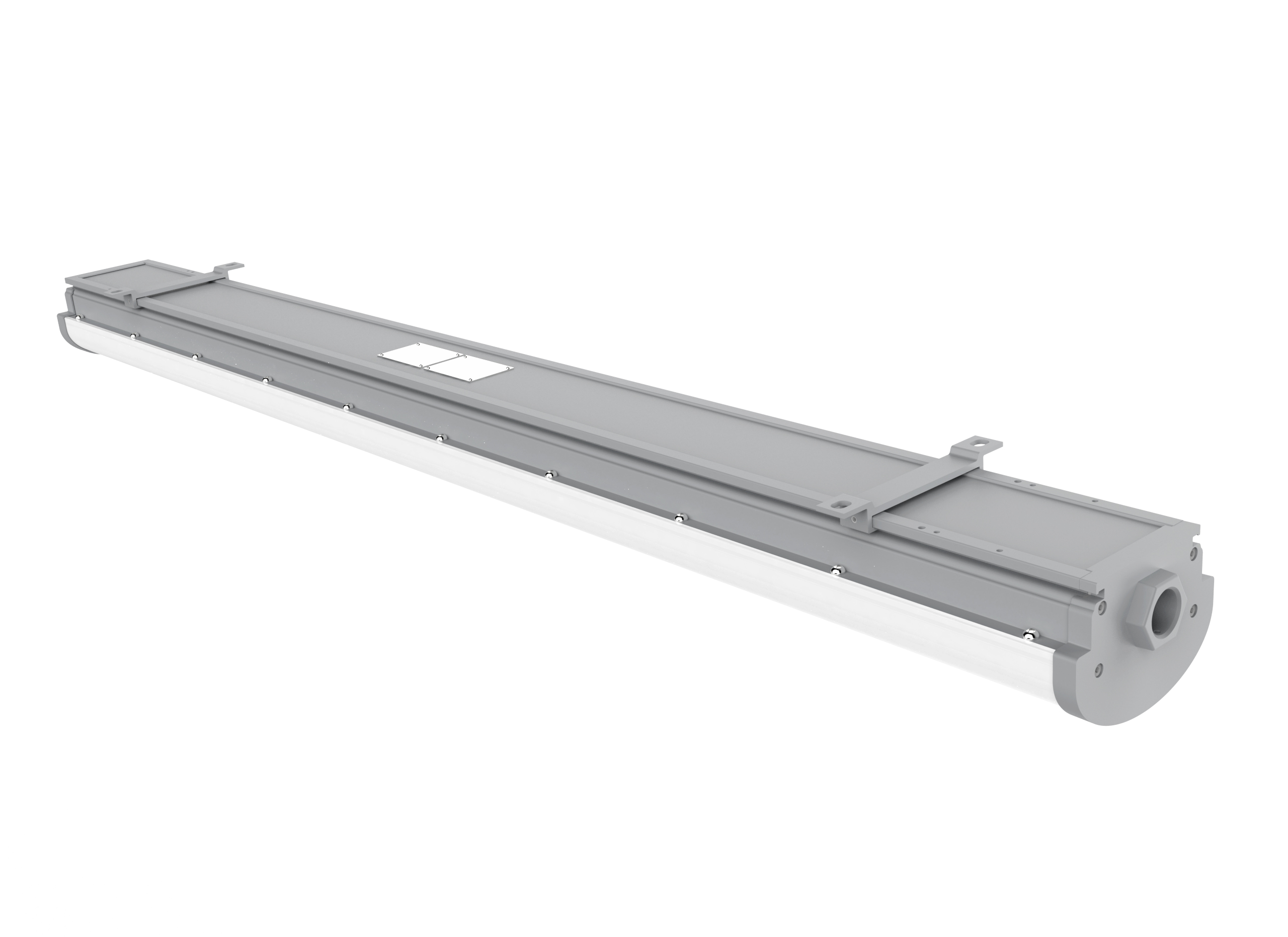

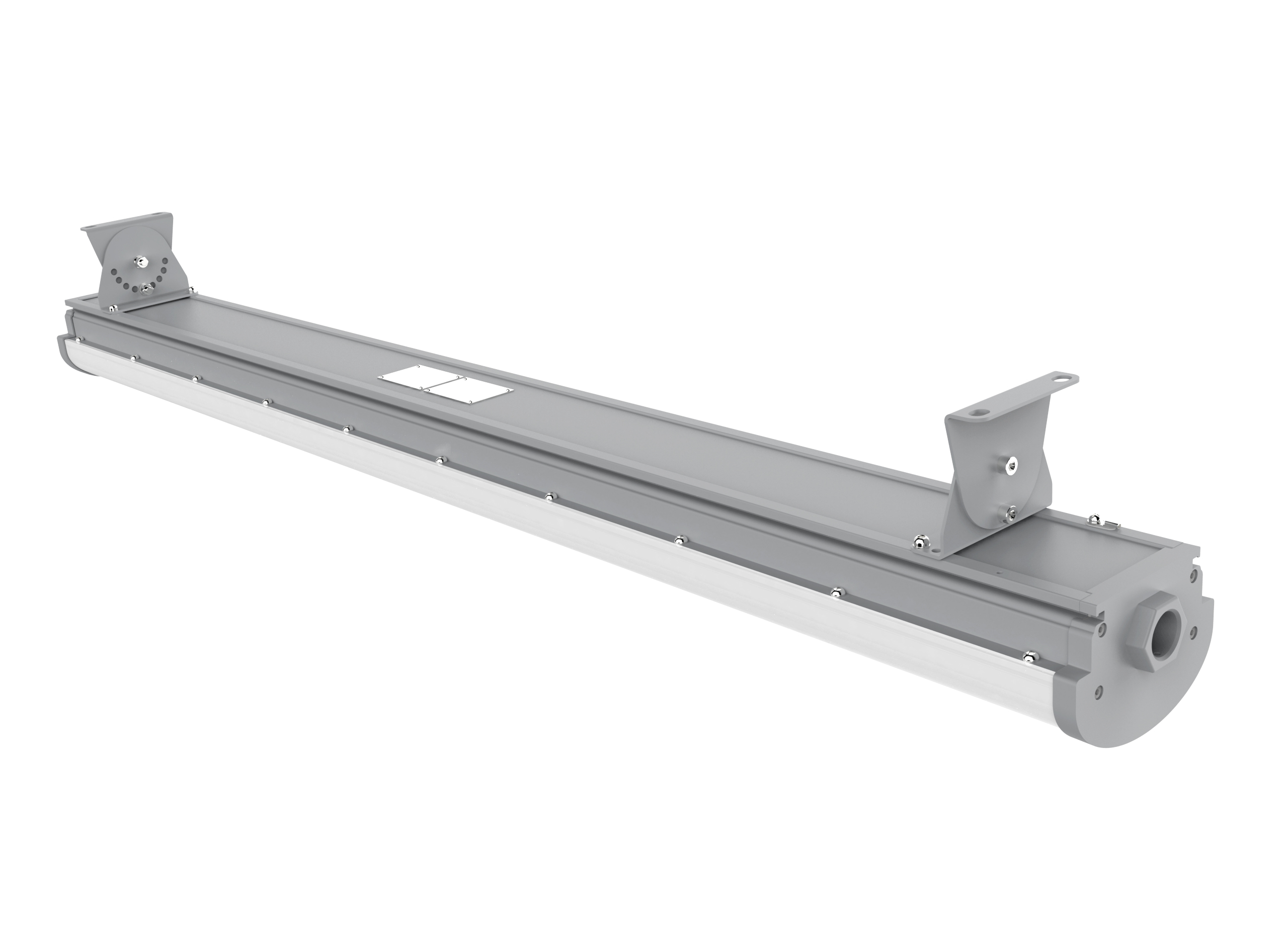

•  Versatile mounting options: ceiling mount / wall mount (adjustable angle) / pendant chain / pole mount

Certifications and compliances


IECEx:

• Ex eb mb IIC T5 Gb;

• Ex tb IIIC T75°C;

• Certificate No：IECEx SEV 21.0038X

Standard: IEC 60079-0-2017; IEC 60079-1-2014; IEC 60079-28-2015; IEC 60079-31-2013;

ATEX:

• II 2G Ex eb mb IIC T5 Gb;

• II 2D Ex tb IIIC T75°C;

• Certificate No：SEV 21 ATEX 0578 X

Standard: EN IEC 60079-0-2018; EN 60079-1-2014; EN 60079-28-2015; EN 60079-31-2014;

Warning

Warning：

IECEx & ATEX :

o “CAUTION-USEFASTENER WITH YIELD STRESS≥640 MPa”；

o “WARNING – DO NOT OPEN WHEN ENERGIZED”；

o “WARNING – DO NOT OPEN WHEN AN EXPLOSIVE ATMOSPHERE IS PRESENT”；

o “WARNING – ONLY USE CABLES SUITABLE FOR 85°C”；

o End user shall use certified cable gland suitable type of protection for final installation purpose；

o End users should avoid the danger of static electricity during use.

o External earthing wire shall be connected when used and the cross-sectional are a shall be more than 4mm ² or 10AWG；

o Under rating condition, maximum temperature on the luminaire’s shell shall not be higher than 90℃ for T5.Temperature at cable inlet shall not be higher than allowable limit of the cable applied, to ensure the cable operation normally. The branch point is 83.6℃ and cable entry point is 69.4℃
